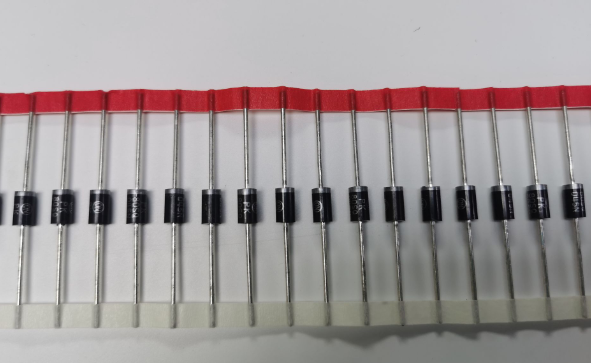

| • High Current Capability |
| • Low Stored Charge, Majority Carrier Conduction |
| • Low Power Loss/High Efficiency |
| • Highly Stable Oxide Passivated Junction |
| • Guard−Ring for Stress Protection |
| • Low Forward Voltage |
| • High Surge Capacity |
| • These are Pb−Free Devices* |
|
| CATALOG |
| 80SQ045NG COUNTRY OF ORIGIN |
| 80SQ045NG PARAMETRIC INFO |
| 80SQ045NG PACKAGE INFO |
| 80SQ045NG MANUFACTURING INFO |
| 80SQ045NG PACKAGING INFO |
|
| COUNTRY OF ORIGIN |
| Malaysia |
| China |
| United States of America |
| Philippines |
|
| PARAMETRIC INFO |
| Type |
Schottky Diode |
| Configuration |
Single |
| Peak Reverse Repetitive Voltage (V) |
45 |
| Maximum DC Reverse Voltage (V) |
45 |
| Maximum Continuous Forward Current (A) |
8 |
| Process Technology |
Bipolar |
| Peak Forward Voltage (V) |
0.55 |
| Peak Non-Repetitive Surge Current (A) |
140 |
| Peak Reverse Current (uA) |
1000 |
| Operating Junction Temperature (°C) |
-65 to 125 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-65 |
| Maximum Operating Temperature (°C) |
125 |
|
| |
| PACKAGE INFO |
| Supplier Package |
DO-201AD |
| Basic Package Type |
Through Hole |
| Pin Count |
2 |
| Lead Shape |
Through Hole |
| PCB |
2 |
| Tab |
N/R |
| Pin Pitch (mm) |
N/R |
| Package Length (mm) |
9.5(Max) |
| Package Width (mm) |
N/R |
| Package Height (mm) |
N/R |
| Package Diameter (mm) |
5.3(Max) |
| Seated Plane Height (mm) |
5.3(Max) |
| Mounting |
Through Hole |
| Package Weight (g) |
110 |
| Package Material |
Plastic |
| Package Description |
Axial Lead Package |
| Package Family Name |
DO |
| Jedec |
DO-201-AD |
|
| |
| MANUFACTURING INFO |
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
220 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu |
|
| |
| PACKAGING INFO |
| Packaging |
Bag |
| Quantity Of Packaging |
500 |
| Packaging Document |
Link to Datasheet |
|
| |
|
