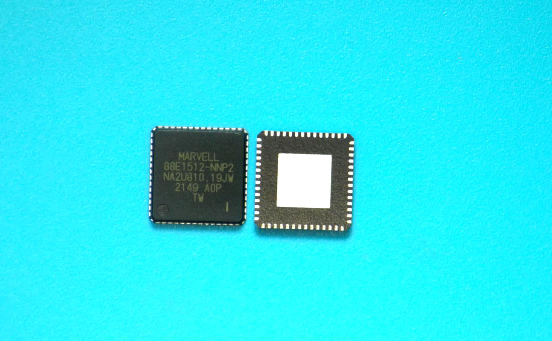

88E1512-A0-NNP2I000 Marvell IC TXRX FULL/HALF 4/4 56QFN

2024/07/26 321

CATALOG

Taiwan (Province of China)

Type	Ethernet Transceiver
Maximum Data Rate	1Gbps
Number of Channels per Chip	1
PHY Line Side Interface	No
JTAG Support	No
Standard Supported	10BASE-T/100BASE-TX/1000BASE-T
Typical Data Rate (Mbps)	10/100/1000
Integrated CDR	No
Number of Transceivers	1
Overhead Octet Support	No
Ethernet Interface Type	GMII/RGMII/SGMII
Ethernet Speed	10Mbps/100Mbps/1000Mbps
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Supplier Temperature Grade	Industrial
Process Technology	CMOS
Maximum Storage Temperature (°C)	125
Minimum Storage Temperature (°C)	-55
Power Supply Type	Analog\|Digital
Typical Operating Supply Voltage (V)	1\|1.8\|3.3
Minimum Operating Supply Voltage (V)	0.95\|1.71\|3.14
Maximum Operating Supply Voltage (V)	1.05\|1.89\|3.46
Operating Supply Voltage (V)	1\|1.8\|3.3

Supplier Package	QFN EP
Basic Package Type	Non-Lead-Frame SMT
Pin Count	56
Lead Shape	No Lead
PCB	56
Tab	N/R
Pin Pitch (mm)	0.5
Package Length (mm)	8
Package Width (mm)	8
Package Height (mm)	0.83
Package Diameter (mm)	N/R
Package Overall Length (mm)	8
Package Overall Width (mm)	8
Package Overall Height (mm)	0.85
Seated Plane Height (mm)	0.85
Mounting	Surface Mount
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Quad Flat No Lead Package, Exposed Pad
Package Family Name	QFN
Jedec	N/A
Package Outline	Link to Datasheet

MSL	3
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	30
Number of Reflow Cycle	3
Standard	N/A
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	Sn
Under Plating Material	N/R
Terminal Base Material	Cu Alloy
Number of Wave Cycles	N/R

Packaging	Tray
Quantity Of Packaging	260
