93LC56AT-I/OT COUNTRY OF ORIGIN
|
93LC56AT-I/OT PARAMETRIC INFO
|
93LC56AT-I/OT PACKAGE INFO
|
93LC56AT-I/OT MANUFACTURING INFO
|
93LC56AT-I/OT PACKAGING INFO
|
93LC56AT-I/OT ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
| Thailand |
|
PARAMETRIC INFO
|
| Density (bit) |
2K |
| Interface Type |
Serial-Microwire |
| Maximum Operating Frequency (MHz) |
2 |
| Maximum Access Time (ns) |
250 |
| Typical Operating Supply Voltage (V) |
3.3|5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Maximum Cycle Time (s) |
15m |
| Programmability |
Yes |
| I/O Mode |
Serial |
| Density in Bits (bit) |
2048 |
| Maximum Operating Current (mA) |
2 |
| Hardware Data Protection |
Yes |
| Organization |
256x8 |
| Data Retention (Year) |
200(Min) |
| Minimum Operating Supply Voltage (V) |
2.5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Storage Temperature (°C) |
-65 |
| Number of Bits per Word (bit) |
8 |
| Maximum Storage Temperature (°C) |
150 |
| Address Bus Width (bit) |
8 |
| Process Technology |
CMOS |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
6 |
| Tab |
N/R |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.6 |
| Package Height (mm) |
1.15 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-178AB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
|

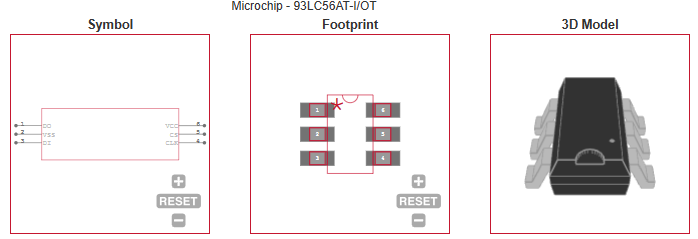

ECAD MODELS
|
|
|
| |
