COUNTRY OF ORIGIN
|
Italy
|
|
PARAMETRIC INFO
|
| Type |
SIP Socket |
| Gender |
SKT |
| Number of Contacts |
6 |
| Termination Method |
Solder |
| Maximum Current Rating (A) |
1/Contact |
| Maximum Voltage Rating |
125VAC |
| Housing Material |
Thermoplastic |
| Contact Material |
Phosphor Bronze |
| Contact Plating |
Tin |
| Insulation Material |
Thermoplastic |
| Number of Rows |
1 |
| Operating Temperature (°C) |
-40 to 105 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
105 |
| Mating Cycle (Cycles) |
20 |
| Maximum Terminal Width (mm) |
0.45(Typ) |
| Maximum Terminal Coplanarity (mm) |
0.15 |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
2 |
| Body Orientation |
Straight |
| Mounting |
Surface Mount |
| Product Length (mm) |
12 |
| Product Depth (mm) |
5 |
| Product Height (mm) |
3.85 |
| Product Weight (g) |
0.192 |
|
|
MANUFACTURING INFO
|
|
|
|
PACKAGING INFO
|

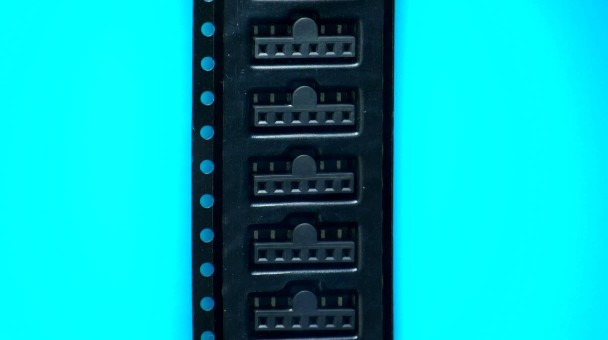

| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|
