• Temperature-stable quiescent output voltage and sensitivity
|
• Output voltage proportional to magnetic flux density
|
• Low-noise output increases accuracy
|
| • Precise recoverability after temperature cycling
|
| • Ratiometric rail-to-rail output |
| • Wide ambient temperature range: –40°C to 150°C |
| • Immune to mechanical stress |
| • Solid-state reliability |
| • Enhanced EMC performance for stringent automotive applications |
|
| CATALOG |
| A1324LLHLX-T COUNTRY OF ORIGIN |
A1324LLHLX-T PARAMETRIC INFO
|
A1324LLHLX-T PACKAGE INFO
|
A1324LLHLX-T MANUFACTURING INFO
|
A1324LLHLX-T PACKAGING INFO
|
| A1324LLHLX-T FUNCTIONAL BLOCK DIAGRAM |
| A1324LLHLX-T APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Philippines |
|
PARAMETRIC INFO
|
| Magnetic Type |
Monolithic |
| Module/IC Classification |
IC |
| Minimum Operating Supply Voltage (V) |
4.5 |
| Typical Operating Supply Voltage (V) |
5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Maximum Supply Current (uA) |
9000 |
| Maximum Output Current (mA) |
10 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Output Driver |
CMOS |
| Operating Supply Voltage (V) |
5 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
170 |
|
|
PACKAGE INFO
|
| Supplier packaging |
SOT-23W |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
3 |
| Pin shape |
Gull-wing |
| PCB |
3 |
| ears |
N/R |
| Pin spacing (mm) |
0.95 |
| Package length (mm) |
2.98 |
| Package width (mm) |
1.91 |
| Package height (mm) |
0.95 |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
2.98 |
| Package Overall Width (mm) |
2.9 |
| Package Overall Height (mm) |
1 |
| Mounting surface height (mm) |
1 |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Small Outline Transistor |
| Package series name |
SOT |
| JEDEC |
not applicable |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
20 to 40 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020C |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Wave soldering temperature source |
Link to datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Plating materials |
not applicable |
| Terminal Base Material |
Cu Alloy |
|
|

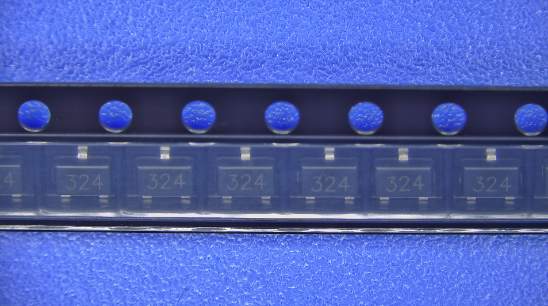

PACKAGING INFO
|
| Package |
Tape and reel packaging |
| Packing quantity |
10000 |
| Reel Diameter (in) |
13 |
| packaging type file |
Link to datasheet |
|
|

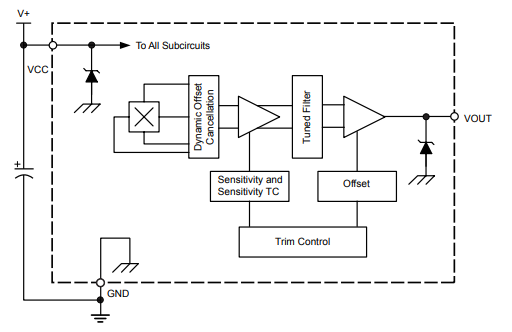

FUNCTIONAL BLOCK DIAGRAM
|
|
|
| |
