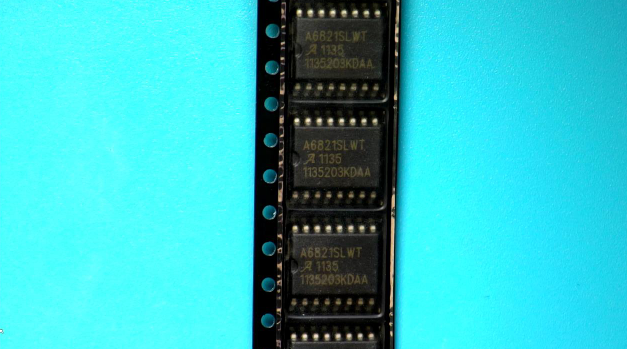

• 3.3 to 5 V logic supply range
|
• Power on reset (POR)
|
• To 10 MHz data input rate
|
| • CMOS, TTL compatible
|
| • –40°C operation available |
| • Schmitt trigger inputs for improved noise immunity |
| • Low-power CMOS logic and latches |
| • High-voltage current-sink outputs |
| • Internal pull-up/pull down resistors |
|
| CATALOG |
| A6821SLWTR-T LIFE CYCLE |
A6821SLWTR-T PARAMETRIC INFO
|
A6821SLWTR-T PACKAGE INFO
|
A6821SLWTR-T MANUFACTURING INFO
|
A6821SLWTR-T PACKAGING INFO
|
| A6821SLWTR-T APPLICATIONS |
|
| LIFE CYCLE |
| ObsoleteApr 30,2011 |
|
PARAMETRIC INFO
|
| Logic Function |
Shift Register/Latch/Driver |
| Process Technology |
DABiC-5 |
| Number of Count Input Enables |
0 |
| Number of Element Inputs |
1 |
| Number of Element Outputs |
9 |
| Number of Elements per Chip |
1 |
| Number of Selection Inputs per Element |
0 |
| Number of Stages |
8 |
| Operation Mode |
Serial to Serial/Parallel |
| Direction Type |
Uni-Directional |
| Terminal Count Output |
no |
| Triggering Type |
Positive-Edge |
| Minimum Operating Supply Voltage (V) |
3 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Typical Operating Supply Voltage (V) |
3.3|5 |
| Minimum Operating Temperature (°C) |
-20 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Propagation Delay Time @ Maximum CL (ns) |
50(Typ)@3V to 5.5V |
| Absolute Propagation Delay Time (ns) |
1000 |
| Propagation Delay Test Condition (pF) |
30 |
| Parallel Enable Input |
no |
|
|
PACKAGE INFO
|
| Supplier packaging |
SOIC W |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
16 |
| Pin shape |
Gull-wing |
| PCB |
16 |
| ears |
N/R |
| Pin spacing (mm) |
1.27 |
| Package length (mm) |
10.3 |
| Package width (mm) |
7.5 |
| Package height (mm) |
2.35(Max) |
| Package diameter (mm) |
N/R |
| Mounting surface height (mm) |
2.65(Max) |
| Install |
Surface Mount |
| Packaging materials |
Plastic |
| package instruction |
Small Outline IC Wide Body |
| Package series name |
SO |
| JEDEC |
MS-013AA |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
20 to 40 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020C |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Plating materials |
not applicable |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging Suffix |
T |
| Package |
Tape and reel packaging |
| Packing quantity |
1000 |
| packaging type file |
Link to datasheet |
|
|
APPLICATIONS
|
• Multiplexed LED displays
|
| • Incandescent lamps |
| |
