| COUNTRY OF ORIGIN |
| China |
|
| PARAMETRIC INFO |
| Pole Throw Configuration |
SPST |
| Switch Configuration |
OFF ON |
| Maximum Current Rating (A) |
0.025@24VDC |
| Maximum DC Voltage Rating (V) |
24 |
| Electrical Life (Cycles) |
1000 |
| Mechanical Life (Cycles) |
1000 |
| Number of Positions |
2 |
| Actuator Style |
Recessed Slide |
| Dielectric Strength |
300VAC |
| Maximum Contact Resistance (mOhm) |
200 |
| Minimum Insulation Resistance (MOhm) |
100 |
| Seal |
No |
| Actuator Length (mm) |
0 |
| Total Pitch (mm) |
1.27 |
| Row Space (mm) |
6.15 |
| Maximum Operating Temperature (°C) |
70 |
| Minimum Operating Temperature (°C) |
-20 |
| Operating Temperature (°C) |
-20 to 70 |
| Type |
Half Pitch SMD DIP Switch |
| Body Length (mm) |
3.77 |
| Body Depth (mm) |
4.5 |
| Body Height (mm) |
1.45 |
|
| |
| PACKAGE INFO |
| Termination Style |
Gull Wing |
| Mounting |
Surface Mount |
| Body Orientation |
Straight |
| Terminal Pitch (mm) |
1.27 |
| Product Length (mm) |
3.77 |
| Product Depth (mm) |
6.7 |
| Product Height (mm) |
1.55 |
| Package Type |
DIP |
| Product Weight (g) |
0.06 |
| Number of Terminals |
4 |
|
| |
| MANUFACTURING INFO |
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
250 |
| Reflow Solder Time (Sec) |
40 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
| |

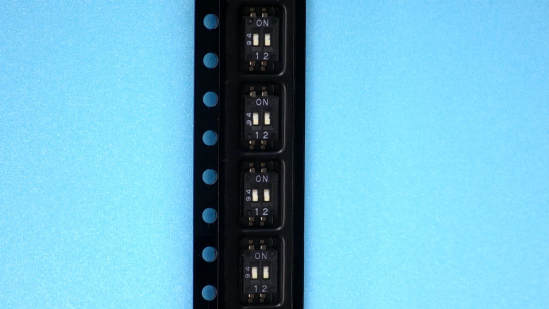

| PACKAGING INFO |
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|
