• Plastic molded SMD
|
• 2.5mm height ideal for high density circuit boards
|
• Suitable for RoHS compliant reflow
|
| • Extended temperature -40°C to +85°C for industrial applications
|
|
| CATALOG |
| ABS25-32.768kHz-1-T COUNTRY OF ORIGIN |
ABS25-32.768kHz-1-T PARAMETRIC INFO
|
ABS25-32.768kHz-1-T PACKAGE INFO
|
ABS25-32.768kHz-1-T MANUFACTURING INFO
|
ABS25-32.768kHz-1-T PACKAGING INFO
|

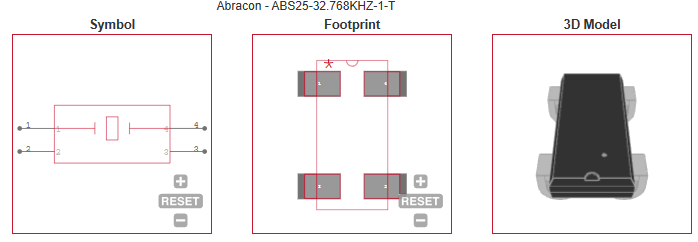

ABS25-32.768kHz-1-T ECAD MODELS
|
| ABS25-32.768kHz-1-T APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Japan |
China
|
|
PARAMETRIC INFO
|
| type |
Crystal |
| Standard Frequency (MHz) |
0.032768 |
| Frequency Tolerance (ppm) |
±10 |
| Load Capacity (pF) |
12.5 |
| Mode of Oscillation |
Fundamental |
| Series Resistance (Ohm) |
50000 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Rating |
Extended |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
125 |
| Frequency Aging (ppm/Year) |
±3 (1st) |
|
|
PACKAGE INFO
|
| Supplier packaging |
SMD |
| Number of pins |
4 |
| PCB |
4 |
| ears |
N/R |
| Pin spacing (mm) |
5.5 |
| Package length (mm) |
8(Max) |
| Package width (mm) |
3.8(Max) |
| Package height (mm) |
2.5(Max) |
| Package diameter (mm) |
N/R |
| Install |
Surface Mount |
| Packaging materials |
Plastic |
| package instruction |
Surface Mount Device |
| Package series name |
SMD |
| JEDEC |
not applicable |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
10 |
| Number of reflow cycles |
2 |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Matt Sn |
| Plating materials |
not applicable |
| Terminal Base Material |
not applicable |
|
|
PACKAGING INFO
|
| Packaging Suffix |
-T |
| Package |

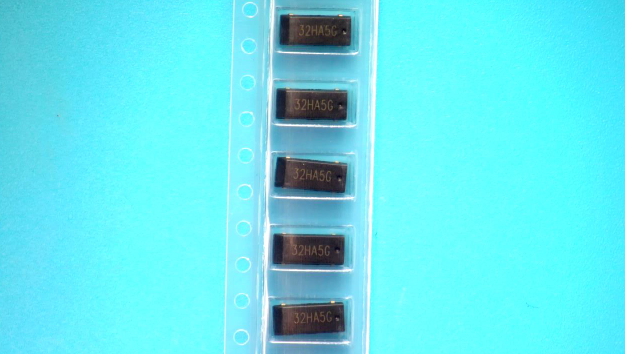

Tape and reel packaging |
| Packing quantity |
3000 |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• Wide range in communication & measuring equipment
|
| • Commercial & Industrial applications |
| • Computer clock |
| |
| |
