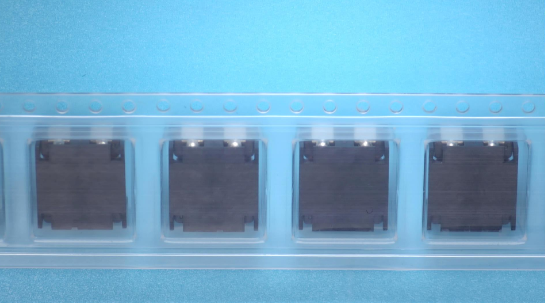

• Chip common mode filter for large current applications
|
• For each series, there is excellent common mode impedance and noise suppression in a compact case.
|
• Compatible with high-density portable devices, which are always being made smaller and lighter, because the height has been reduced.
|
| • Operating temperature range: –40 to +85°C |
| |
| CATALOG |
| ACM1211-102-2PL-TL01 COUNTRY OF ORIGIN |
ACM1211-102-2PL-TL01 PARAMETRIC INFO
|
ACM1211-102-2PL-TL01 PACKAGE INFO
|
ACM1211-102-2PL-TL01 MANUFACTURING INFO
|
ACM1211-102-2PL-TL01 PACKAGING INFO
|
ACM1211-102-2PL-TL01 EACD MODELS
|
| ACM1211-102-2PL-TL01 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
|
PARAMETRIC INFO
|
| Type |
Power Line |
| Number of Lines |
2 |
| Configuration |
Dual |
| Inductance (H) |
33.7u |
| Impedance (Ohm) |
1k |
| Test Frequency (Hz) |
100M |
| Maximum DC Current (A) |
6 |
| Maximum DC Resistance (Ohm) |
0.014 |
| Minimum Insulation Resistance (Ohm) |
10M |
| Voltage Rating |
80VDC |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-40 |
|
|
PACKAGE INFO
|
| Mounting |
Surface Mount |
| Product Length (mm) |
12.3 |
| Product Depth (mm) |
11.3 |
| Product Height (mm) |
6 |
| Case Size |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
N/A |
| Reflow Solder Time (Sec) |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
| Packaging Suffix |
TL |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
500 |
| Packaging Document |
Link to Datasheet |
|
|

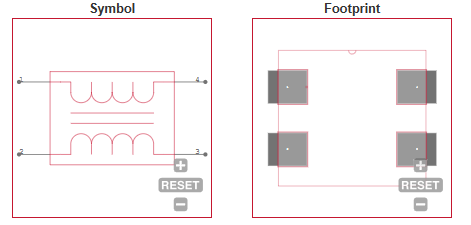

ECAD MODELS
|
|
|
| APPLICATIONS |
| •
Power line noise countermeasure for various electronic equipment.
|
|
