• AEC-Q200 compliant, Grade 1
|
• PPAP ready and supported
|
• Manufactured in TS/IATF 16949 production lines
|
• Excellent impedance characteristics
|
• Rated current up to 15A
|
• Extremely low DCR
|
|
| CATALOG |
ACMP-Q7040-102-T COUNTRY OF ORIGIN
|
ACMP-Q7040-102-T PARAMETRIC INFO
|
ACMP-Q7040-102-T PACKAGE INFO
|
ACMP-Q7040-102-T MANUFACTURING INFO
|
ACMP-Q7040-102-T PACKAGING INFO
|
ACMP-Q7040-102-T APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Type |
Power Line |
| Number of Lines |
2 |
| Configuration |
Dual |
| Impedance (Ohm) |
1.02k |
| Test Frequency (Hz) |
100M |
| Maximum DC Current (A) |
3 |
| Maximum DC Resistance (Ohm) |
0.017 |
| Minimum Insulation Resistance (Ohm) |
10M |
| Voltage Rating |
80VDC |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-40 |
|
|
PACKAGE INFO
|
| Mounting |
Surface Mount |
| Maximum Product Length (mm) |
7.5 |
| Maximum Product Depth (mm) |
6.5 |
| Maximum Product Height (mm) |
3.8 |
| Case Size |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
250 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
N/A |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Ag |
| Number of Wave Cycles |
N/R |
|
|
| PACKAGING INFO |
| Packaging |

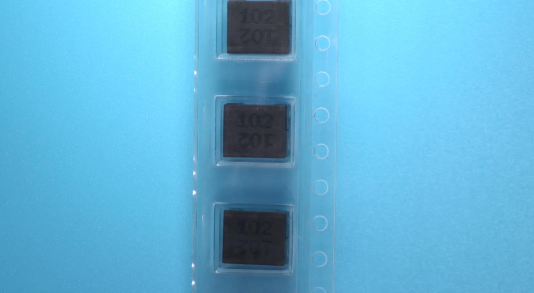

Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
| |
| APPLICATIONS |
| • DC power line common mode noise suppression. |
| • Multimedia devices |
| • Automotive power train |
| • Automotive infotainment |
| |
