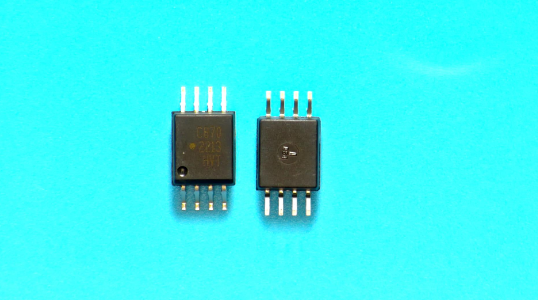

• Advanced Sigma-Delta (Σ-Δ) Modulation Technology
|
• Unity Gain 1 V/V, ±0.5% High Gain Accuracy (ACPL-C87B)
|
• 1 GΩ Input Impedence
|
• 0 to 2 V Nominal Input Range
|
• 21 μV /°C Off set Voltage Drift
|
| • 0.1% Non-Linearity Max |
| • Active-High Shutdown Pin |
| • 100 kHz Wide Bandwidth |
| • 3 V to 5.5 V Wide Supply Range for Output Side |
| • -40° C to +105° C Operating Temperature Range |
| • 15 kV/s Common-Mode Transient Immunity |
| • Compact, Auto-Insertable Stretched SO-8 Package |
| • Safety and Regulatory Approvals:
– IEC/EN/DIN EN 60747-5-5: 1414 Vpeak working
insulation voltage
– UL 1577: 5000 Vrms/1 min double protection rating
– CSA: Component Acceptance Notice #5 |
|
| CATALOG |
ACPL-C870-000E COUNTRY OF ORIGIN
|
ACPL-C870-000E PARAMETRIC INFO
|
ACPL-C870-000E PACKAGE INFO
|
ACPL-C870-000E MANUFACTURING INFO
|
ACPL-C870-000E PACKAGING INFO
|
ACPL-C870-000E APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Philippines
|
|
PARAMETRIC INFO
|
| Direction Type |
Uni-Directional |
| Number of Channels per Chip |
1 |
| Maximum Input Current (mA) |
15 |
| Common Mode Voltage (V) |
1000 |
| Minimum Common Mode Rejection (kV/us) |
10 |
| Minimum Operating Supply Voltage (V) |
4.5 |
| Typical Operating Supply Voltage (V) |
5 |
| Maximum Propagation Delay Time (ns) |
6500 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Isolation Voltage (V) |
5000 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
105 |
| Operating Supply Voltage (V) |
4.5 to 5.5 |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-55 |
|
|
PACKAGE INFO
|
| Supplier Package |
SO |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5.85 |
| Package Width (mm) |
6.81 |
| Package Height (mm) |
3.18 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
3.38 |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
|
|
|
APPLICATIONS
|
• Isolated Voltage Sensing in AC and Servo Motor Drives
|
| • Isolated DC-Bus Voltage Sensing in Solar Inverters,
Wind Turbine Inverters |
• Isolated Sensor Interfaces
|
• Signal Isolation in Data Acquisition Systems
|
| • General Purpose Voltage Isolation |
| |
