• Unity gain
|
• ± 0.5% (ACPL-C87BT) and ± 1% (ACPL-C87AT) gain
tolerance @ 25°C
|
• –0.3 mV Input offset voltage
|
• 0.05% non linearity
|
• 25 ppm/°C gain drift vs. temperature
|
• 100 kHz bandwidth
|
• 0 to 2V nominal input range
|
• Qualified to AEC-Q100 Grade 1 test guidelines
|
• Operating temperature: –40°C to +125°C
|
• Shutdown feature (active high)
|
• 15 kV/µs common-mode rejection at VCM = 1 kV
|
• Working voltage, VIORM = 1414 Vpeak
|

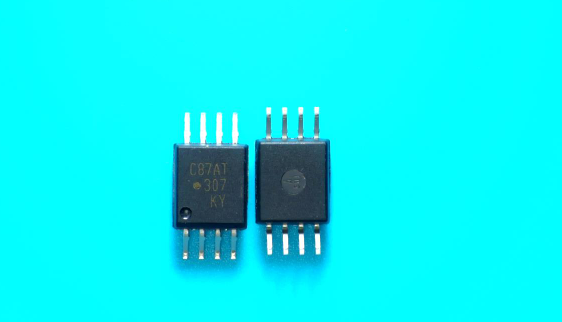

• Compact, surface mount stretched SO8 package
|
• Worldwide safety approval:
– UL 1577 (5000 VRMS/1 minute)
– CSA
– IEC/EN/DIN EN 60747-5-5
|
|
| CATALOG |
| ACPL-C87AT-000E COUNTRY OF ORIGIN |
ACPL-C87AT-000E PARAMETRIC INFO
|
ACPL-C87AT-000E PACKAGE INFO
|
ACPL-C87AT-000E MANUFACTURING INFO
|
ACPL-C87AT-000E PACKAGING INFO
|
ACPL-C87AT-000E FUNCTIONAL BLOCK DIAGRAM
|
ACPL-C87AT-000E APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
| Philippines |
| Taiwan (Province of China) |
|
PARAMETRIC INFO
|
| Direction Type |
Uni-Directional |
| Number of Channels per Chip |
1 |
| Maximum Input Current (mA) |
15 |
| Common Mode Voltage (V) |
1000 |
| Minimum Common Mode Rejection (kV/us) |
10 |
| Minimum Operating Supply Voltage (V) |
3|4.5 |
| Typical Operating Supply Voltage (V) |
3.3|5 |
| Maximum Propagation Delay Time (ns) |
6000 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Isolation Voltage (V) |
5000 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Automotive |
| Operating Supply Voltage (V) |
3 to 5.5 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-55 |
|
|
PACKAGE INFO
|
| Supplier Package |
SSO |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5.85 |
| Package Width (mm) |
6.81 |
| Package Height (mm) |
3.18 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5.85 |
| Package Overall Width (mm) |
11.5 |
| Package Overall Height (mm) |
3.38 |
| Seated Plane Height (mm) |
3.38 |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Stretched Small Outline IC |
| Package Family Name |
SOP |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
80 |
| Packaging Document |
Link to Datasheet |
|
|

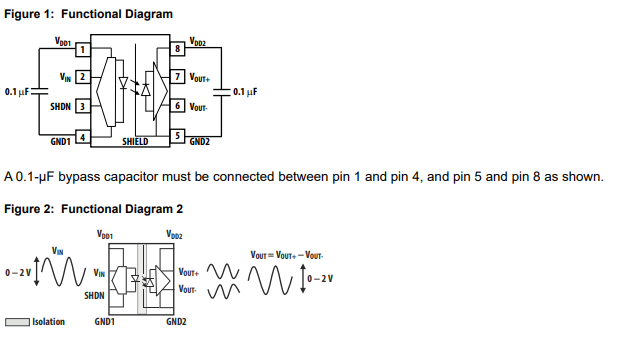

FUNCTIONAL BLOCK DIAGRAM
|
|
|
APPLICATIONS
|
• Automotive BMS battery pack voltage sensing
|
• Automotive DC/DC converter voltage sensing
|
• Automotive motor inverter DC bus voltage sensing
|
• Automotive AC/DC (charger) DC output voltage
sensing
|
• Isolation interface for temperature sensing
|
• General-purpose voltage sensing and monitoring
|
|
