• Patented integrated digital temperature compensation circuitry allows for near closed loop accuracy over temperature in an open loop sensor
|
• UL60950-1 (ed. 2) certified□ Dielectric Strength Voltage = 2.4 kVrms□ Basic Isolation Working Voltage = 420 Vpk/297 Vrms
|
• Industry-leading noise performance with greatly improved bandwidth through proprietary amplifier and filter design techniques
|
| • Pin-selectable band width: 80 kHz for high bandwidth applications or 20 kHz for low noise performance
|
| • 0.65 mΩ primary conductor resistance for low power loss and high inrush current withstand capability |
| • Small footprint, low-profile SOIC8 package suitable for space-constrained applications |
| • Integrated shield virtually eliminates capacitive coupling from current conductor to die, greatly suppressing output noise due to high dv/dt transients |
| • 3 to 3.6 V, single supply operation |
|
| CATALOG |
| ACS722LLCTR-10AB-T COUNTRY OF ORIGIN |
ACS722LLCTR-10AB-T PARAMETRIC INFO
|
ACS722LLCTR-10AB-T PACKAGE INFO
|
ACS722LLCTR-10AB-T MANUFACTURING INFO
|
ACS722LLCTR-10AB-T PACKAGING INFO
|
|
| COUNTRY OF ORIGIN |
| Malaysia |
| Philippines |
|
PARAMETRIC INFO
|
| type |
Open Loop |
| Sensing Current Type |
AC|DC |
| Accuracy (%) |
±3 |
| Typical Response Time (us) |
22.5 |
| Sensitivity (mV/A) |
132 |
| Operating Frequency (kHz) |
80 |
| Maximum Output Voltage (V) |
25 |
| Maximum Isolation Voltage |
2400Vrms |
| Primary Current Measuring Range (A) |
±10 |
| Measuring Principle |
Hall Effect |
| Minimum Operating Supply Voltage (V) |
3 |
| Process Technology |
BiCMOS |
| Typical Operating Supply Voltage (V) |
3.3 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Module/IC Classification |
IC |
| Maximum Storage Temperature (°C) |
165 |
| Minimum Storage Temperature (°C) |
-65 |
|
|
PACKAGE INFO
|
| Supplier packaging |
SOIC N |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
8 |
| Pin shape |
Gull-wing |
| PCB |
8 |
| ears |
N/R |
| Pin spacing (mm) |
1.27 |
| Package length (mm) |
4.9 |
| Package width (mm) |
3.9 |
| Package height (mm) |
1.5(Max) |
| Package diameter (mm) |
N/R |
| Mounting surface height (mm) |
1.75(Max) |
| Install |
Surface Mount |
| Packaging materials |
Plastic |
| package instruction |
Small Outline IC Narrow Body |
| Package series name |
SO |
| JEDEC |
MS-012AA |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
20 to 40 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020C |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Wave soldering temperature source |
Link to datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Plating materials |
not applicable |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|

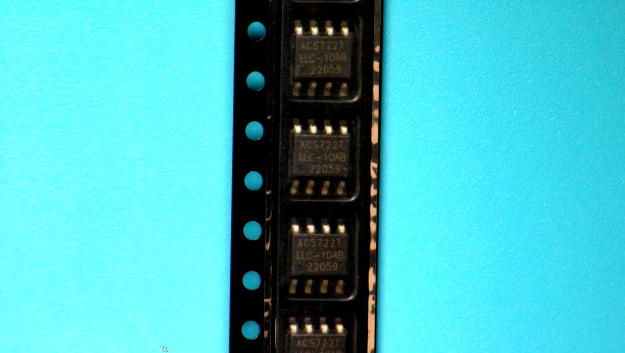

| Package |
Tape and reel packaging |
| Packing quantity |
3000 |
|
| |
