• Differential Hall sensing rejects common-mode fields
|
• Patented integrated digital temperature compensation circuitry allows for near closed loop accuracy over temperature in an open loop sensor
|
• UL60950-1 (ed. 2) certified□ Dielectric Strength Voltage = 4.8 kVRMS□ Basic Isolation Working Voltage = 1097 VRMS□ Reinforced Isolation Working Voltage = 565 VRMS
|
| • Industry-leading noise performance with greatly improved bandwidth through proprietary amplifier and filter design techniques
|
| • Filter pin allows user to filter output for improved resolution at lower bandwidth |
| • 0.85 mΩ primary conductor resistance for low power loss and high inrush current withstand capability |
| • Low-profile SOIC16 package suitable for spaceconstrained application |
| • 3 × 3 SON PowerPAD™, 6-Pin SOT223 and 5-Pin DDPAK Package |
| • Output voltage proportional to AC or DC current |
|
| CATALOG |

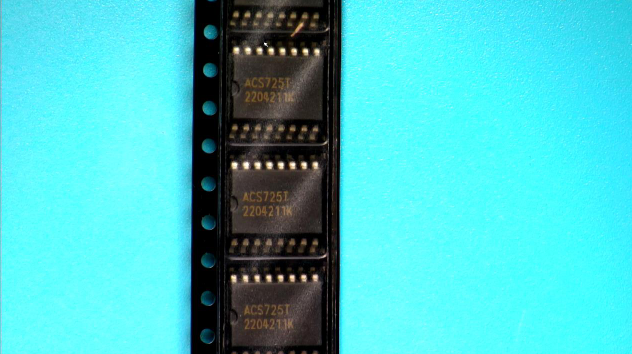

| ACS725KMATR-30AB-T COUNTRY OF ORIGIN |
ACS725KMATR-30AB-T PARAMETRIC INFO
|
ACS725KMATR-30AB-T PACKAGE INFO
|
ACS725KMATR-30AB-T PACKAGING INFO
|
|
| COUNTRY OF ORIGIN |
| Malaysia |
|
PARAMETRIC INFO
|
| type |
Closed Loop|Open Loop |
| Typical RMS Primary Current (A) |
±30 |
| Sensing Current Type |
AC|DC |
| Accuracy (%) |
±2.5 |
| Typical Response Time (us) |
4 |
| Sensitivity (mV/A) |
44 |
| Operating Frequency (kHz) |
120 |
| Minimum Operating Supply Voltage (V) |
3 |
| Typical Operating Supply Voltage (V) |
3.3 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Module/IC Classification |
IC |
| Maximum Storage Temperature (°C) |
165 |
| Minimum Storage Temperature (°C) |
-65 |
|
|
PACKAGE INFO
|
| Supplier packaging |
SOIC W |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
16 |
| Pin shape |
Gull-wing |
| PCB |
16 |
| ears |
N/R |
| Package length (mm) |
10.3 |
| Package width (mm) |
7.5 |
| Package height (mm) |
2.35(Max) |
| Package diameter (mm) |
N/R |
| Install |
Surface Mount |
| package instruction |
Small Outline IC Wide Body |
| Package series name |
SO |
| JEDEC |
MS-013AA |
| Package outline |
Link to datasheet |
|
|
PACKAGING INFO
|
| Package |
Tube |
| Packing quantity |
78 |
|
| |
