| CATALOG |
| ACS770LCB-050B-PFF-T COUNTRY OF ORIGIN |
ACS770LCB-050B-PFF-T PARAMETRIC INFO
|
ACS770LCB-050B-PFF-T PACKAGE INFO
|
ACS770LCB-050B-PFF-T MANUFACTURING INFO
|
ACS770LCB-050B-PFF-T PACKAGING INFO
|
ACS770LCB-050B-PFF-T ECAD MODELS
|
ACS770LCB-050B-PFF-T FUNCTIONAL BLOCK DIAGRAM
|
|
COUNTRY OF ORIGIN
|
| China |
Philippines
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Type |
Open Loop |
| Typical RMS Primary Current (A) |
±50 |
| Sensing Current Type |
AC|DC |
| Accuracy (%) |
±0.5 |
| Typical Response Time (us) |
4.6 |
| Sensitivity (mV/A) |
40 |
| Operating Frequency (kHz) |
120 |
| Maximum Output Voltage (V) |
25 |
| Minimum Operating Supply Voltage (V) |
4.5 |
| Typical Operating Supply Voltage (V) |
5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Module/IC Classification |
IC |
| Supplier Temperature Grade |
Automotive |
| Maximum Storage Temperature (°C) |
165 |
| Minimum Storage Temperature (°C) |
-65 |
|
|

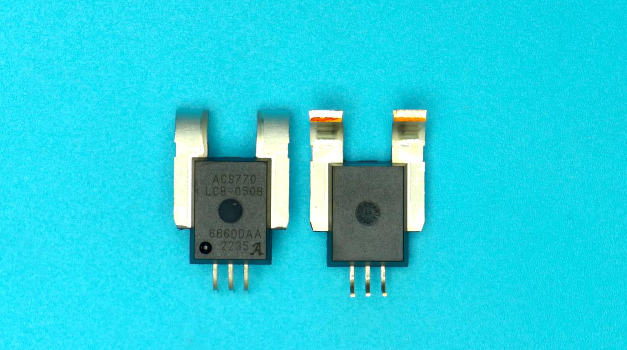

PACKAGE INFO
|
| Supplier Package |
Case CB-PFF |
| Basic Package Type |
Through Hole |
| Pin Count |
5 |
| Lead Shape |
Through Hole |
| PCB |
5 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.9 |
| Package Length (mm) |
10 |
| Package Width (mm) |
13 |
| Package Height (mm) |
7 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
10.5 |
| Mounting |
Through Hole |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
N/A |
| Package Family Name |
Case CB-PFF |
| Jedec |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
245 to 285 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
34 |
| Packaging Document |
Link to Datasheet |
|
|

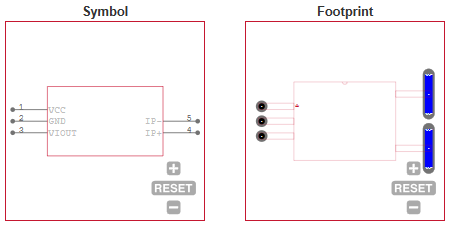

ECAD MODELS
|
|
|

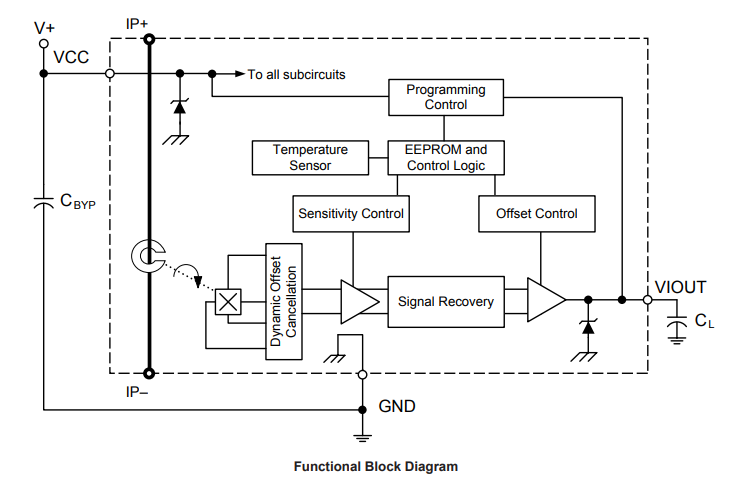

FUNCTIONAL BLOCK DIAGRAM
|
|
| |
