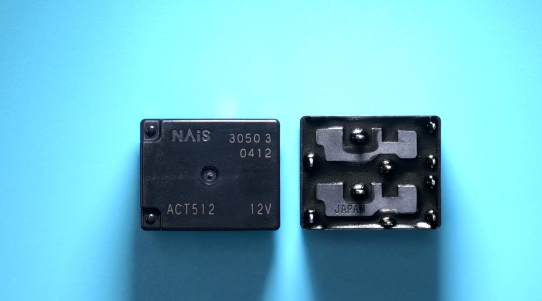

• Terminal layout for simplifying PC board pattern design
|
• Capable of 25A high-capacity load switching with compact size
|
• Plastic sealed type
|
|
| CATALOG |
ACT512 PARAMETRIC INFO
|
ACT512 PACKAGE INFO
|
ACT512 MANUFACTURING INFO
|
ACT512 PACKAGING INFO
|
ACT512 APPLICATIONS
|
|
PARAMETRIC INFO
|
| DC Coil Voltage (V) |
12 |
| Coil Current (mA) |
66.7 |
| Contact Arrangement |
DPDT |
| Contact Form |
2 Form C |
| Contact Material |
Silver Alloy(Cadmium Free) |
| Maximum Switching Current (A) |
20(NO)/10(NC) |
| Coil Resistance (Ohm) |
180 |
| Maximum Pick-Up Voltage |
7.2VDC |
| Minimum Dropout Voltage |
1VDC |
| Relay Construction |
Non-Latching |
| Operate Time (ms) |
10 |
| Release Time (ms) |
10 |
| Seal |
Plastic Sealed |
| Maximum Contact Resistance (mOhm) |
7(NO)/10(NC) |
| Insulation Resistance (MOhm) |
100 |
| Electrical Life (Operations) |
200000 |
| Mechanical Life (Operations) |
10000000 |
| LED Indicator |
No |
| Coil Suppression Diode |
No |
| Push to Test Button |
No |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
|
|
PACKAGE INFO
|
| Mounting |
Through Hole |
| Termination Style |
PC Pin |
| Number of Terminals |
10 |
| Package Type |
N/A |
| Product Length (mm) |
17.4 |
| Product Depth (mm) |
14 |
| Product Height (mm) |
13.5 |
| Product Weight (g) |
8 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
6 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
30 |
| Packaging Document |
Link to Datasheet |
|
|
APPLICATIONS
|
• Power windows
|
• Auto door lock
|
• Power sunroof
|
• Electrically powered mirrors
|
• Powered seats
|
• Lift gates
|
• Slide door closers, etc. (for DC motor forward/reverse control circuits)
|
| |
