• 5 V stereo audio DAC system
|
• Accepts 16-bit/18-bit/20-bit/24-bit data
|
• Supports 24 bits, 192 kHz sample rate
|
• Accepts a wide range of sample rates including 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, and 192 kHz
|
• Data-directed scrambling DAC—least sensitive to jitter
|
|
| CATALOG |
AD1852JRSZRL COUNTRY OF ORIGIN
|
AD1852JRSZRL PARAMETRIC INFO
|
AD1852JRSZRL PACKAGE INFO
|
AD1852JRSZRL MANUFACTURING INFO
|
AD1852JRSZRL PACKAGING INFO
|
AD1852JRSZRL ECAD MODELS
|
AD1852JRSZRL FUNCTIONAL BLOCK DIAGRAM
|
AD1852JRSZRL APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Architecture |
Delta-Sigma |
| Resolution |
24bit |
| Number of DAC Channels |
2 |
| Number of Outputs per Chip |
2 |
| Conversion Rate |
192ksps |
| Converter Type |
Audio |
| Output Type |
Voltage |
| Voltage Reference |
Internal |
| Interface Type |
Serial (3-Wire, SPI) |
| Output Polarity |
Bipolar |
| Full Scale Error |
±10%FSR |
| Signal to Noise Ratio |
117dB(Typ) |
| Minimum Operating Temperature (°C) |
0 |
| Maximum Operating Temperature (°C) |
70 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
| Power Supply Type |
Analog and Digital |
| Minimum Single Supply Voltage (V) |
4.5 |
| Typical Single Supply Voltage (V) |
5 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Digital Supply Support |
Yes |
| Maximum Power Dissipation (mW) |
265(Typ) |
|
|

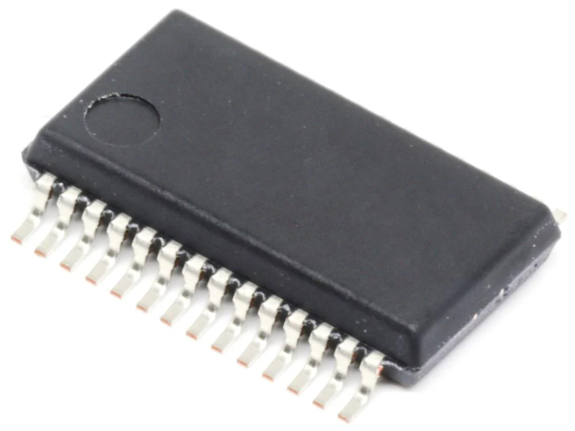

PACKAGE INFO
|
| Supplier Package |
SSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
28 |
| Lead Shape |
Gull-wing |
| PCB |
28 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
10.2 |
| Package Width (mm) |
5.3 |
| Package Height (mm) |
1.75 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
2(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Shrink Small Outline Package |
| Package Family Name |
SO |
| Jedec |
MO-150AH |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Suffix |
RL |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1500 |
| Reel Diameter (in) |
13 |
| Tape Pitch (mm) |
12 |
| Tape Width (mm) |
24 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Plastic |
| Tape Type |
Embossed |
|
|

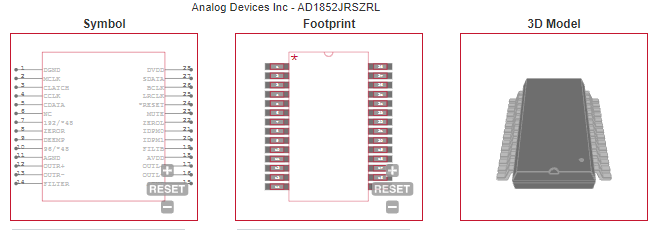

ECAD MODELS
|
|
|

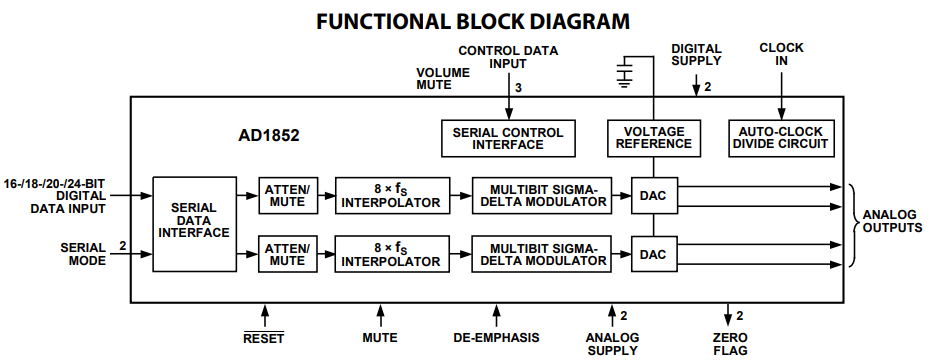

| FUNCTIONAL BLOCK DIAGRAM |
 |
|
| APPLICATIONS |
| High end DVDs, CDs, home theater systems, automotive, audio systems, sampling musical keyboards, digital mixing consoles, and digital audio effects processors |
| |
