• 256 positions
|
• 10 kΩ, 100 kΩ, 1 MΩ
|
• Low temperature coefficient: 30 ppm/°C
|
| • Internal power on midscale preset
|
| • Single-supply 2.7 V to 5.5 V or dual-supply ±2.7 V for ac or
bipolar operation |
| • I
2C-compatible interface with readback capability |
| • Extra programmable logic outputs
|
| • Self contained shutdown feature
|
| • Extended temperature range: −40°C to +105°C |
|
| CATALOG |
| AD5242BRZ10-REEL7 COUNTRY OF ORIGIN |
AD5242BRZ10-REEL7 PARAMETRIC INFO
|
AD5242BRZ10-REEL7 PACKAGE INFO
|
AD5242BRZ10-REEL7 MANUFACTURING INFO
|
AD5242BRZ10-REEL7 PACKAGING INFO
|

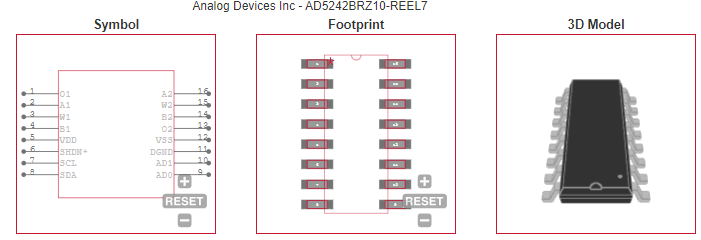

AD5242BRZ10-REEL7 ECAD MODELS
|
| AD5242BRZ10-REEL7 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
| Philippines |
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Resistance Value (KOhm) |
10 |
| Number of Positions |
256 |
| Number of Pots per Package |
2 |
| Memory Type |
Volatile |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
105 |
| Supplier Temperature Rating |
Extended |
| Power Supply Type |
Single|Dual |
| Maximum Dual Supply Voltage (V) |
±2.7 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Maximum Supply Current (mA) |
0.0001(Typ) |
| Minimum Dual Supply Voltage (V) |
±2.3 |
| Minimum Single Supply Voltage (V) |
2.7 |
| Typical Dual Supply Voltage (V) |
±2.5 |
| Typical Single Supply Voltage (V) |
5 |
| Control Interface |
Serial (2-Wire, I2C) |
|
|
PACKAGE INFO
|
| Supplier packaging |
SOIC N |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
16 |
| Pin shape |
Gull-wing |
| PCB |
16 |
| ears |
N/R |
| Pin spacing (mm) |
1.27 |
| Package length (mm) |
10(Max) |
| Package width (mm) |
4(Max) |
| Package height (mm) |
1.5(Max) |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
10(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Mounting surface height (mm) |
1.75(Max) |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Small Outline IC Narrow Body |
| Package series name |
SO |
| JEDEC |
MS-012AC |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020D |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Plating materials |
Ag |
| Terminal Base Material |
Cu Alloy |
|
|

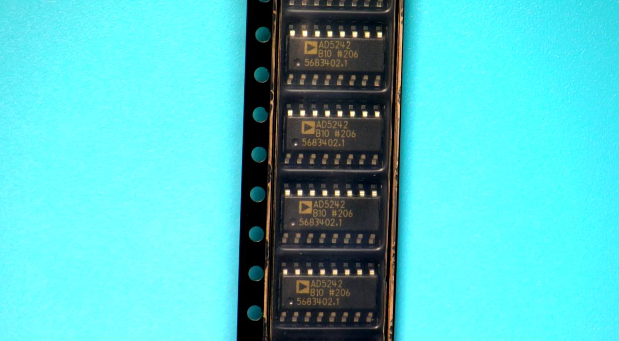

PACKAGING INFO
|
| Packaging Suffix |
REEL7 |
| Package |
Tape and reel packaging |
| Packing quantity |
1000 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
16 |
| Component Orientation |
Q1 |
| packaging type file |
Link to datasheet |
| Tape Material |
Plastic |
| Tape Type |
Embossed |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• Multimedia, video, and audio
|
• Communications
|
| • Mechanical potentiometer replacement |
• Instrumentation: gain, offset adjustment
|
| • Programmable voltage-to-current conversion |
| • Line impedance matching
|
| |
