| • Single-channel, 1024-position resolution |
| • 20 kΩ, 50 kΩ, and 100 kΩ nominal resistance
Calibrated 1% nominal resistor tolerance (resistor
performance mode) |
| • Rheostat mode temperature coefficient: 35 ppm/°C |
| • Voltage divider temperature coefficient: 5 ppm/°C |
| • Single-supply operation: 9 V to 33 V
|
| • Dual-supply operation: ±9 V to ±16.5 V |
| • SPI-compatible serial interface |
| • Wiper setting readback |
|
| CATALOG |
| AD5293BRUZ-50-RL7 COUNTRY OF ORIGIN |
| AD5293BRUZ-50-RL7 PARAMETRIC INFO |
| AD5293BRUZ-50-RL7 PACKAGE INFO |
| AD5293BRUZ-50-RL7 MANUFACTURING INFO |
| AD5293BRUZ-50-RL7 PACKAGING INFO |
| AD5293BRUZ-50-RL7 ECAD MODELS |

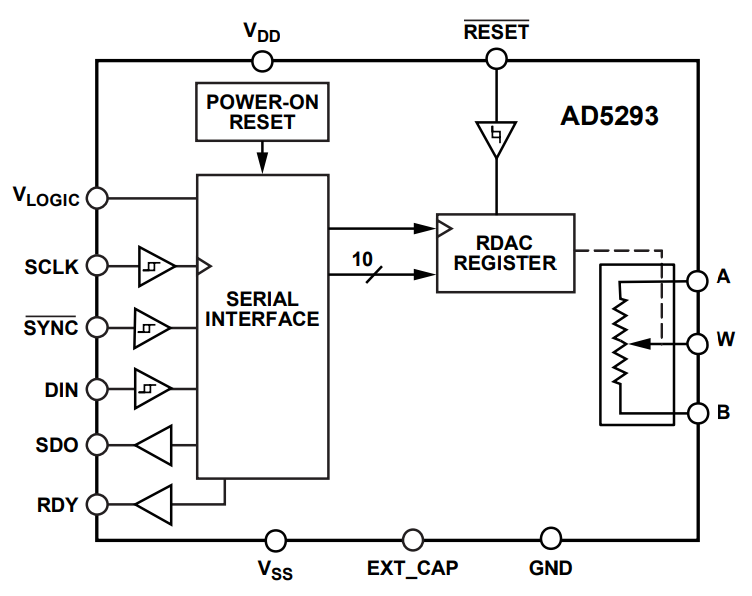

| AD5293BRUZ-50-RL7 FUNCTIONAL BLOCK DIAGRAM
|
| AD5293BRUZ-50-RL7 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Ireland |
| Philippines |
|
| PARAMETRIC INFO |
| Resistance Value (KOhm) |
50 |
| Number of Positions |
1024 |
| Number of Pot per Package |
1 |
| Memory Type |
Volatile |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
105 |
| Supplier Temperature Grade |
Extended Industrial |
| Power Supply Type |
Single|Dual |
| Maximum Dual Supply Voltage (V) |
±16.5 |
| Maximum Single Supply Voltage (V) |
33 |
| Maximum Supply Current (mA) |
0.0001(Typ) |
| Minimum Dual Supply Voltage (V) |
±9 |
| Minimum Single Supply Voltage (V) |
9 |
| Typical Dual Supply Voltage (V) |
±15 |
| Typical Single Supply Voltage (V) |
15 |
| Control Interface |
Serial (4-Wire, SPI) |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
|
| PACKAGE INFO |
| Supplier Package |
TSSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
14 |
| Lead Shape |
Gull-wing |
| PCB |
14 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
5 |
| Package Width (mm) |
4.4 |
| Package Height (mm) |
1 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5 |
| Package Overall Width (mm) |
6.4 |
| Package Overall Height (mm) |
1.2(Max) |
| Seated Plane Height (mm) |
1.2(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Thin Shrink Small Outline Package |
| Package Family Name |
SOP |
| Jedec |
MO-153AB-1 |
| Package Outline |
Link to Datasheet |
|
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
|

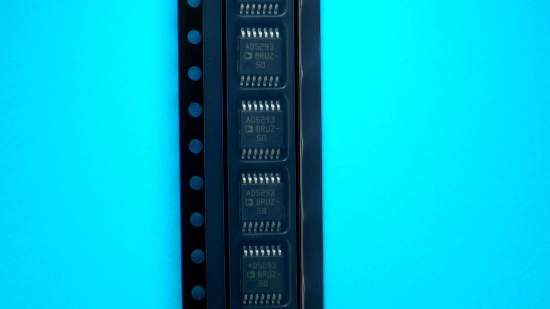

| PACKAGING INFO |
| Packaging Suffix |
RL7 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Reel Diameter (in) |
7 |
| Packaging Document |
Link to Datasheet |
|
| ECAD MODELS |
 |
|

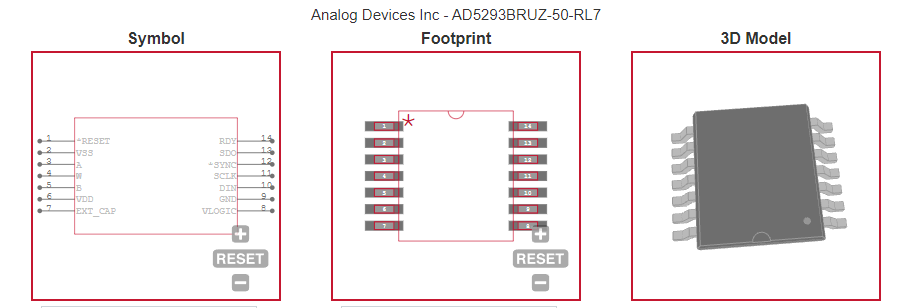

| FUNCTIONAL BLOCK DIAGRAM
|
 |
|
| APPLICATIONS |
| • Mechanical potentiometer replacement |
| • Instrumentation: gain and offset adjustment |
| • Programmable voltage-to-current conversion |
| • Programmable filters, delays, and time constants |
| • Programmable power supply |
| • Low resolution DAC replacements |
| • Sensor calibration |
|
