• Laser trimmed to high accuracy 10.000 V ±5 mV (L and U models)
|
• −10 V reference capability
|
• Low quiescent current: 1.0 mA maximum
|
• 10 mA current output capability
|
|
| CATALOG |

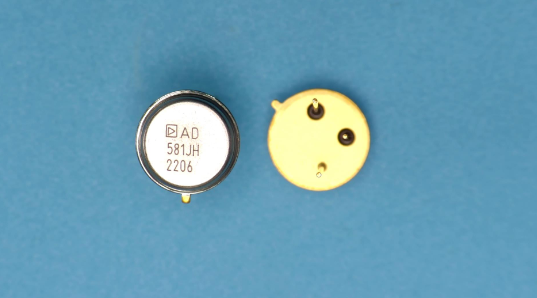

AD581JH COUNTRY OF ORIGIN
|
AD581JH PARAMETRIC INFO
|
AD581JH PACKAGE INFO
|
AD581JH MANUFACTURING INFO
|
AD581JH PACKAGING INFO
|
AD581JH ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Philippines
|
|
PARAMETRIC INFO
|
| Topology |
Series |
| Reference Type |
Fixed |
| Output Voltage (V) |
10 |
| Initial Accuracy |
30mV |
| Minimum Operating Temperature (°C) |
0 |
| Maximum Operating Temperature (°C) |
70 |
| Supplier Temperature Grade |
Commercial |
| Load Regulation |
500uV/mA |
| Line Regulation |
0.005%/V |
| Maximum Input Voltage (V) |
40 |
| Regulation Condition Change In Load |
5mA |
| Regulation Condition Change In Line |
2V |
| Maximum Output Current (mA) |
10 |
| Maximum Temperature Coefficient |
30ppm/°C |
|
|
PACKAGE INFO
|
| Supplier Package |
TO-5 |
| Basic Package Type |
Through Hole |
| Pin Count |
3 |
| Lead Shape |
Through Hole |
| PCB |
3 |
| Tab |
N/R |
| Pin Pitch (mm) |
2.54 |
| Package Length (mm) |
N/R |
| Package Width (mm) |
N/R |
| Package Height (mm) |
4.7(Max) |
| Package Diameter (mm) |
9.4(Max) |
| Seated Plane Height (mm) |
4.7(Max) |
| Mounting |
Through Hole |
| Package Weight (g) |
N/A |
| Package Material |
Metal |
| Package Description |
Transistor Outline Package |
| Package Family Name |
TO |
| Jedec |
TO-205AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
N/A |
| Wave Solder Time (Sec) |
N/A |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
| Shelf Life Period |
N/A |
| Shelf Life Condition |
N/A |
| Number of Wave Cycles |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
100 |
|
|
ECAD MODELS
|
|
|
