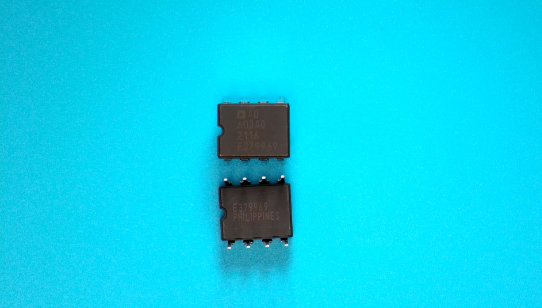

AD603AQ Analog Devices IC OPAMP VGA 90MHZ 8CDIP

label:

2023/11/6 242

• Linear-in-dB gain control

• Pin-programmable gain ranges
−11 dB to +31 dB with 90 MHz bandwidth
- 9 dB to 51 dB with 9 MHz bandwidth

• Any intermediate range, for example −1 dB to +41 dB
- with 30 MHz bandwidth

• Bandwidth independent of variable gain

• 1.3 nV/√Hz input noise spectral density

• ±0.5 dB typical gain accuracy

CATALOG

AD603AQ COUNTRY OF ORIGIN

AD603AQ PARAMETRIC INFO

AD603AQ PACKAGE INFO

AD603AQ MANUFACTURING INFO

AD603AQ PACKAGING INFO

AD603AQ ECAD MODELS

AD603AQ FUNCTIONAL BLOCK DIAGRAM

AD603AQ APPLICATIONS

COUNTRY OF ORIGIN

Philippines

United States of America

PARAMETRIC INFO

Type	Variable Gain Amplifier
Number of Elements per Chip	1
Number of Channels per Chip	1
Maximum Input Bias Current (uA)	0.25@±5V
Maximum Quiescent Current (mA)	17@±5V
Maximum Input Resistance (MOhm)	0.000103@±5V
Maximum Voltage Gain Range (dB)	<35
Maximum Voltage Gain (dB)	31.3
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Minimum Storage Temperature (°C)	-65
Maximum Storage Temperature (°C)	150
Power Supply Type	Dual
Maximum Supply Voltage Range (V)	10 to 15
Minimum Dual Supply Voltage (V)	±4.75
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±6.3
Maximum Operating Supply Voltage (V)	±6.3
Maximum Power Dissipation (mW)	400

Supplier Package	CDIP
Basic Package Type	Through Hole
Pin Count	8
Lead Shape	Through Hole
PCB	8
Tab	N/R
Pin Pitch (mm)	2.54
Package Length (mm)	10.29(Max)
Package Width (mm)	7.87(Max)
Package Height (mm)	3.56(Max)
Package Diameter (mm)	N/R
Seated Plane Height (mm)	5.08(Max)
Mounting	Through Hole
Package Material	Ceramic
Package Description	Ceramic Dual In Line Package
Package Family Name	DIP
Jedec	N/A

MANUFACTURING INFO

MSL	N/R
Maximum Reflow Temperature (°C)	N/R
Reflow Solder Time (Sec)	N/R
Maximum Wave Temperature (°C)	300
Wave Solder Time (Sec)	60
Wave Temp. Source	Link to Datasheet
Lead Finish(Plating)	SnPb
Under Plating Material	Ag
Terminal Base Material	FeNi Alloy

Packaging	Tube
Quantity Of Packaging	48
Packaging Document	Link to Datasheet

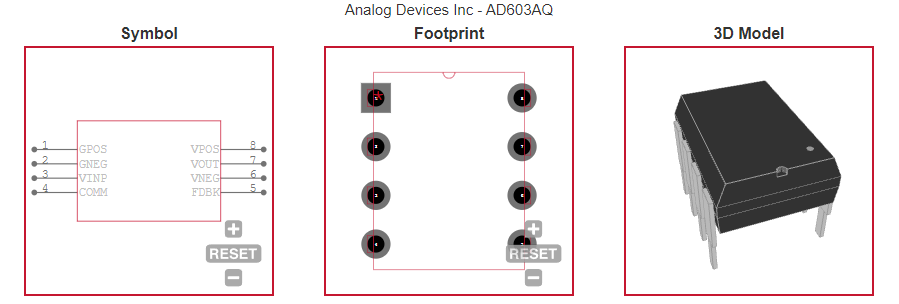

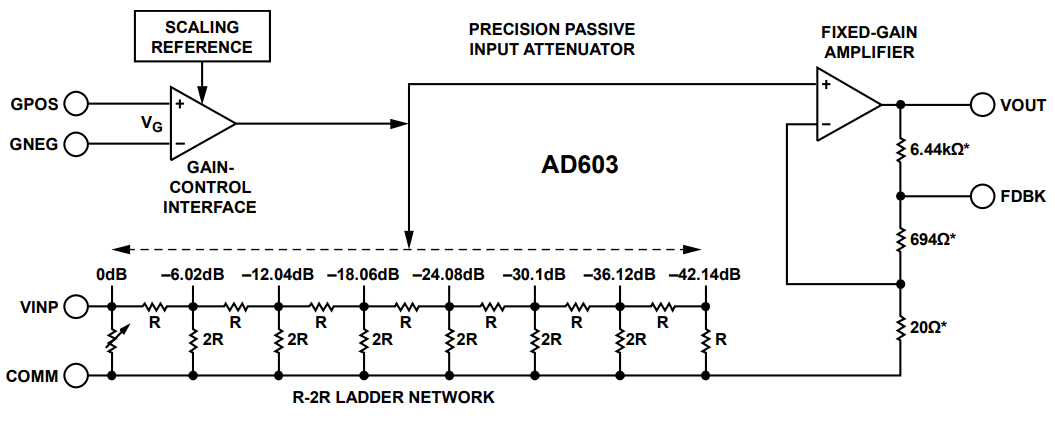

FUNCTIONAL BLOCK DIAGRAM

• RF/IF AGC amplifiers

• Video gain controls

• A/D range extensions

• Signal measurements
