• Low Cost
|
• Single or Dual Supply, 5 V to 36 V, 65 V to 618 V
|
• Full-Scale Frequency Up to 500 kHz
|
| • Minimum Number of External Components Needed
|
| • Versatile Input Amplifier Positive or Negative Voltage Modes Negative Current Mode High Input Impedance, Low Drift |
| • Low Power: 2.0 mA Quiescent Current |
| • Low Offset: 1 mV |
|
| CATALOG |
| AD654JRZ-REEL7 COUNTRY OF ORIGIN |
AD654JRZ-REEL7 PARAMETRIC INFO
|
AD654JRZ-REEL7 PACKAGE INFO
|
AD654JRZ-REEL7 MANUFACTURING INFO
|
AD654JRZ-REEL7 PACKAGING INFO
|
AD654JRZ-REEL7 EACD MODELS
|
| AD654JRZ-REEL7 FUNCTIONAL BLOCK DIAGRAM |
|
| COUNTRY OF ORIGIN |
| Taiwan (Province of China) |
|
PARAMETRIC INFO
|
| Converter Function |
VFC |
| Converter Type |
Non-Synchronous |
| Full Scale Frequency (kHz) |
500 |
| Linearity Error |
±0.4%FSR |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Power Supply Type |
Single|Dual |
| Operating Supply Voltage (V) |
5|9|12|15|18|24|28|±9|±12|±15 |
| Minimum Single Supply Voltage (V) |
4.5 |
| Typical Single Supply Voltage (V) |
5|9|12|15|18|24|28 |
| Maximum Single Supply Voltage (V) |
36 |
| Minimum Dual Supply Voltage (V) |
±5 |
| Typical Dual Supply Voltage (V) |
±9|±12|±15 |
| Maximum Dual Supply Voltage (V) |
±18 |
|
|
PACKAGE INFO
|
| Supplier packaging |
SOIC N |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
8 |
| Pin shape |
Gull-wing |
| PCB |
8 |
| ears |
N/R |
| Pin spacing (mm) |
1.27 |
| Package length (mm) |
5(Max) |
| Package width (mm) |
4(Max) |
| Package height (mm) |
1.5(Max) |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Mounting surface height (mm) |
1.75(Max) |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Small Outline IC Narrow Body |
| Package series name |
SO |
| JEDEC |
MS-012AA |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020D |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Plating materials |
Ag |
| Terminal Base Material |
Cu Alloy |
|
|

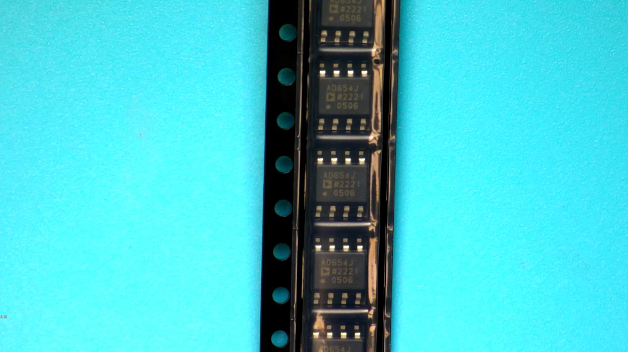

PACKAGING INFO
|
| Packaging Suffix |
REEL7 |
| Package |
Tape and reel packaging |
| Packing quantity |
750 |
| Reel Diameter (in) |
7 |
| packaging type file |
Link to datasheet |
|
|

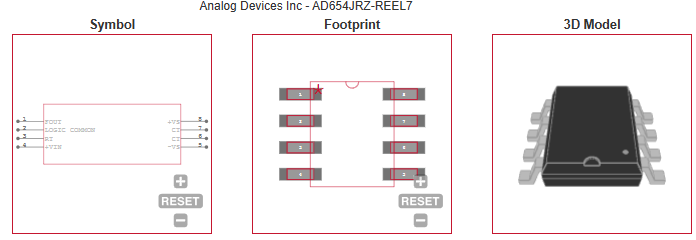

ECAD MODELS
|
|
|

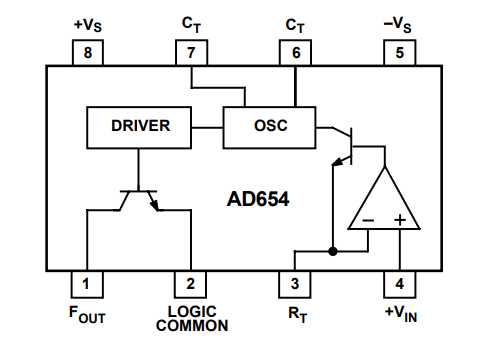

| FUNCTIONAL BLOCK DIAGRAM |
|
|
