• Fast settling filter option |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
• 4 differential/8 pseudo differential input channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
• RMS noise: 11 nV @ 4.7 Hz (gain = 128) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
• 15.5 noise-free bits @ 2.4 kHz (gain = 128) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Up to 22 noise-free bits (gain = 1) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Offset drift: ±5 nV/°C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Gain drift: ±1 ppm/°C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Specified drift over time |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Automatic channel sequencer |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Programmable gain (1 to 128) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Output data rate: 4.7 Hz to 4.8 kHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Internal or external clock |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Simultaneous 50 Hz/60 Hz rejection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
• 4 general-purpose digital outputs |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
•Power supply AVDD: 3 V to 5.25 V DVDD: 2.7 V to 5.25 V |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Current: 4.65 mA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Temperature range: −40°C to +105°C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
• 28-lead TSSOP and 32-lead LFCSP packages |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Interface 3-wire serial SPI, QSPI™, MICROWIRE™, and DSP compatible Schmitt trigger on SCLK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
CATALOG | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
AD7193BRUZ-REEL COUNTRY OF ORIGIN |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
AD7193BRUZ-REEL PARAMETRIC INFO |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
AD7193BRUZ-REEL PACKAGE INFO |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
AD7193BRUZ-REEL MANUFACTURING INFO |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
AD7193BRUZ-REEL PACKAGING INFO |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
AD7193BRUZ-REEL ECAD MODELS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
AD7193BRUZ-REEL FUNCTIONAL BLOCK DIAGRAM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
AD7193BRUZ-REEL APPLICATIONS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
COUNTRY OF ORIGIN |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
Malaysia |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
Philippines |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
PARAMETRIC INFO |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
PACKAGE INFO |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
MANUFACTURING INFO |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
PACKAGING INFO |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
ECAD MODELS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||

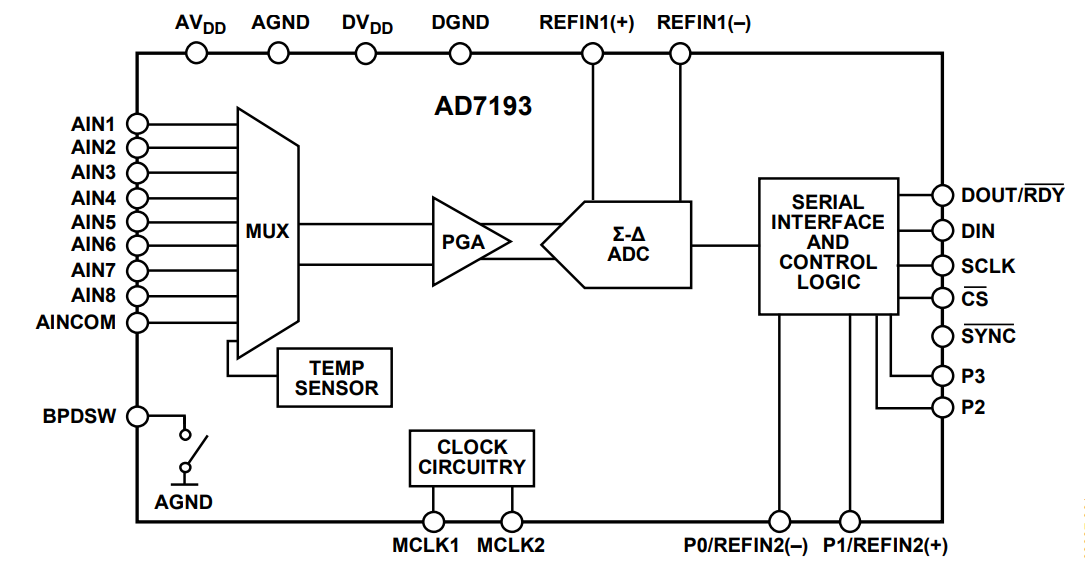

FUNCTIONAL BLOCK DIAGRAM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
APPLICATIONS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
• PLC/DCS analog input modules | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Data acquisition | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Strain gage transducers | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Pressure measurement | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Temperature measurement | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Flow measurement | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Weigh scales | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Chromatography | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Medical and scientific instrumentation | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
