• 10-Bit Temperature-to-Digital Converter
|
• –55C to +125C Operating Temperature Range
|
• 2C Accuracy
|
| • SPI- and DSP-Compatible Serial Interface
|
| • Shutdown Mode |
| • Space-Saving SOT-23 Package |
|
| CATALOG |
| AD7814ARTZ-REEL7 COUNTRY OF ORIGIN |
AD7814ARTZ-REEL7 PARAMETRIC INFO
|
AD7814ARTZ-REEL7 PACKAGE INFO
|
AD7814ARTZ-REEL7 MANUFACTURING INFO
|
AD7814ARTZ-REEL7 PACKAGING INFO
|
AD7814ARTZ-REEL7 EACD MODELS
|
| AD7814ARTZ-REEL7 FUNCTIONAL BLOCK DIAGRAM |
| AD7814ARTZ-REEL7 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Philippines |
| Malaysia |
|
PARAMETRIC INFO
|
|
Temperature Sensor |
| Interface Type |
Serial (4-Wire, SPI) |
| Resolution (bit) |
10 |
| Output Type |
Digital |
| Minimum Operating Supply Voltage (V) |
2.7 |
| Typical Operating Supply Voltage (V) |
3.3|5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Temperature Sensing (°C) |
-55 |
| Maximum Temperature Sensing (°C) |
125 |
| Operating Temperature (°C) |
-55 to 125 |
| Operating Range |
-55°C to 125°C |
| Maximum Supply Current (uA) |
400 |
| Maximum Power Dissipation (mW) |
450 |
| Accuracy |
±2°C |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
125 |
| Operating Supply Voltage (V) |
2.7 to 5.5 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier packaging |
SOT-23 |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
6 |
| Pin shape |
Gull-wing |
| PCB |
6 |
| ears |
N/R |
| Pin spacing (mm) |
0.95 |
| Package length (mm) |
2.9 |
| Package width (mm) |
1.6 |
| Package height (mm) |
1.15 |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
2.9 |
| Package Overall Width (mm) |
2.8 |
| Package Overall Height (mm) |
1.45(Max) |
| Mounting surface height (mm) |
1.45(Max) |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Small Outline Transistor |
| Package series name |
SOT |
| JEDEC |
MO-178AB |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020D |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Au |
| Plating materials |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
not applicable |
| Shelf Life Condition |
not applicable |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Suffix |
REEL7 |
| Package |
Tape and reel packaging |
| Packing quantity |
3000 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Q3 |
| packaging type file |
Link to datasheet |
| Tape Material |
Plastic |
| Tape Type |
Embossed |
|
|

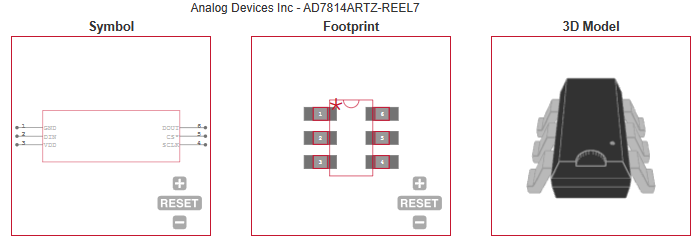

ECAD MODELS
|
|
|

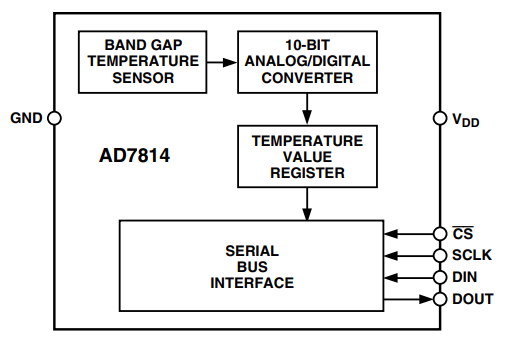

| FUNCTIONAL BLOCK DIAGRAM |
|
|
| APPLICATIONS |
| • Hard Disk Drives |
| • Personal Computers |
| • Electronic Test Equipment |
| • Office Equipment |
| • Domestic Appliances |
| • Process Control |
| |
