Two Video Amplifiers in One 8-Lead SOIC Package
|
Optimized for Driving Cables in Video Systems
|
Excellent Video Specifications (RL = 150 V):Gain Flatness 0.1 dB to 40 MHz 0.02% Differential Gain Error 0.028 Differential Phase Error
|
Low Power Operates on Single +3 V Supply 5.5 mA/Amplifier Max Power Supply Current
|
High Speed145 MHz Unity Gain Bandwidth (3 dB) 1600 V/ms Slew Rate
|
Easy to Use 50 mA Output Current Output Swing to 1 V of Rails (150 V Load)
|
|
| CATALOG |
AD812ARZ-REEL COUNTRY OF ORIGIN
|
AD812ARZ-REEL PARAMETRIC INFO
|
AD812ARZ-REEL PACKAGE INFO
|
AD812ARZ-REEL MANUFACTURING INFO
|
AD812ARZ-REEL PACKAGING INFO
|
AD812ARZ-REEL ECAD MODELS
|
AD812ARZ-REEL APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Number of Circuits |
2 |
| Typical Gain Bandwidth Product (MHz) |
145 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Power Supply Type |
Single|Dual |
| Operating Supply Voltage (V) |
±3|±5|±12|±15|3|5|9|12|15|18|24|28 |
| Minimum Single Supply Voltage (V) |
2.4 |
| Typical Single Supply Voltage (V) |
3|5|9|12|15|18|24|28 |
| Maximum Single Supply Voltage (V) |
36 |
| Minimum Dual Supply Voltage (V) |
±1.2 |
| Typical Dual Supply Voltage (V) |
±3|±5|±12|±15 |
| Maximum Dual Supply Voltage (V) |
±18 |
| Maximum Power Dissipation (mW) |
900 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC N |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
4(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Narrow Body |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

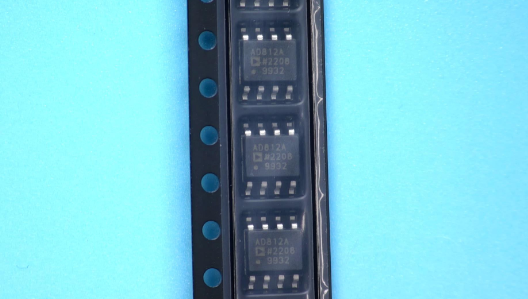

PACKAGING INFO
|
| Packaging Suffix |
REEL |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
13 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Plastic |
| Tape Type |
Embossed |
|
|

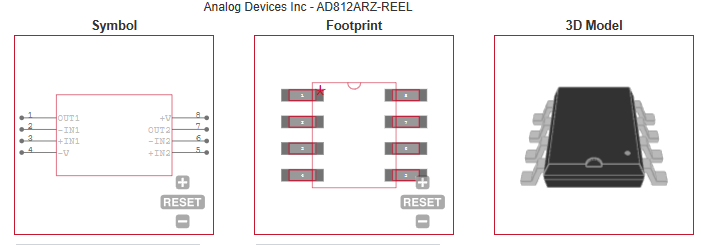

| ECAD MODELS |
|
|
| APPLICATIONS |
• Video Line Driver
|
| • Professional Cameras |
• Video Switchers
|
| • Special Effects |
|
