AD8210YRZ-REEL7 COUNTRY OF ORIGIN
|
AD8210YRZ-REEL7 PARAMETRIC INFO
|
AD8210YRZ-REEL7 PACKAGE INFO
|
AD8210YRZ-REEL7 MANUFACTURING INFO
|
AD8210YRZ-REEL7 PACKAGING INFO
|
AD8210YRZ-REEL7 ECAD MODELS
|

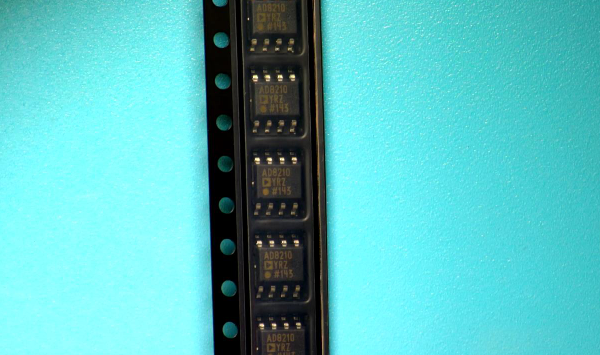

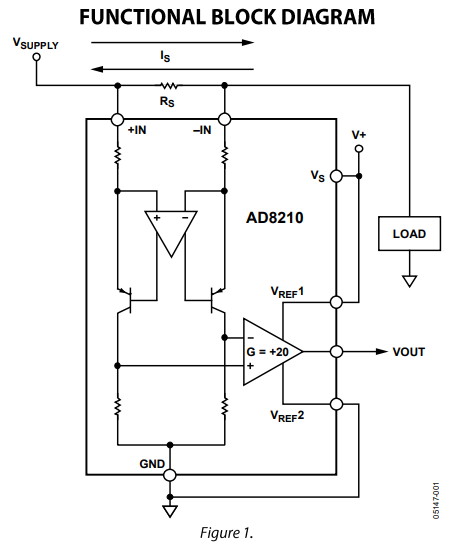

AD8210YRZ-REEL7 FUNCTIONAL BLOCK DIAGEAM
|
|
COUNTRY OF ORIGIN
|
Philippines
|
Taiwan (Province of China)
|
Malaysia
|
Thailand
|
|
PARAMETRIC INFO
|
| Type |
Current Sense Amplifier |
| Number of Elements per Chip |
2 |
| Number of Channels per Chip |
1 |
| Maximum Input Offset Voltage (mV) |
1@5V |
| Minimum CMRR (dB) |
80(Typ) |
| Minimum CMRR Range (dB) |
75 to 85 |
| Maximum Quiescent Current (mA) |
2@5V@-40C to 125C |
| Maximum Voltage Gain Range (dB) |
<35 |
| Maximum Voltage Gain (dB) |
26.02(Typ) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Power Supply Type |
Single |
| Maximum Supply Voltage Range (V) |
5 to 7 |
| Minimum Single Supply Voltage (V) |
4.5 |
| Typical Single Supply Voltage (V) |
5 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC N |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
4(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Narrow Body |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging Suffix |
REEL7 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Plastic |
| Tape Type |
Embossed |
|
|

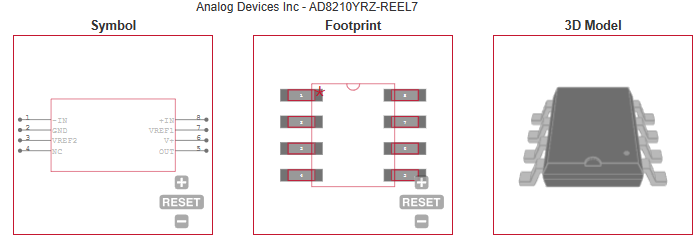

| ECAD MODELS |
 |
|
| FUNCTIONAL BLOCK DIAGEAM |
 |
| |
