• Easy to use
|
• Available in space-saving MSOP
|
• Gain set with 1 external resistor (gain range 1 to 1000)
|
• Wide power supply range: ±2.3 V to ±18 V
|
• Temperature range for specified performance:
−40°C to +85°C
|
• Operational up to 125°C
|
• Excellent AC specifications
80 dB minimum CMRR to 10 kHz (G = 1)
825 kHz, –3 dB bandwidth (G = 1)
2 V/µs slew rate
|
• Low noise
8 nV/√Hz, @ 1 kHz, maximum input voltage noise
0.25 µV p-p input noise (0.1 Hz to 10 Hz)
|
• High accuracy dc performance (AD8221BR)
90 dB minimum CMRR (G = 1)
25 µV maximum input offset voltage
0.3 µV/°C maximum input offset drift
0.4 nA maximum input bias current
|
|
| CATALOG |
AD8221ARZ-R7 COUNTRY OF ORIGIN
|
AD8221ARZ-R7 PARAMETRIC INFO
|
AD8221ARZ-R7 PACKAGE INFO
|
AD8221ARZ-R7 MANUFACTURING INFO
|
AD8221ARZ-R7 PACKAGING INFO
|
AD8221ARZ-R7 ECAD MODELS
|
AD8221ARZ-R7 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
Taiwan (Province of China)
|
United States of America
|
|
PARAMETRIC INFO
|
| Number of Channels per Chip |
1 |
| Minimum PSRR (dB) |
130 |
| Maximum Input Offset Voltage (mV) |
0.06@±15V |
| Maximum Input Bias Current (uA) |
0.0015@±15V |
| Minimum CMRR (dB) |
130 |
| Maximum Quiescent Current (mA) |
1@±15V |
| Minimum CMRR Range (dB) |
>=130 |
| Minimum Dual Supply Voltage (V) |
±2.3 |
| Maximum Input Resistance (MOhm) |
100000(Typ)@±15V |
| Maximum Dual Supply Voltage (V) |
±18 |
| Maximum Voltage Gain Range (dB) |
60 to 75 |
| Maximum Voltage Gain (dB) |
60 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Industrial |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Power Supply Type |
Dual |
| Maximum Supply Voltage Range (V) |
30 to 50 |
| Typical Dual Supply Voltage (V) |
±3|±5|±9|±12|±15 |
| Maximum Operating Supply Voltage (V) |
±18 |
| Maximum Power Dissipation (mW) |
200 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC N |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
4(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Narrow Body |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
|
|

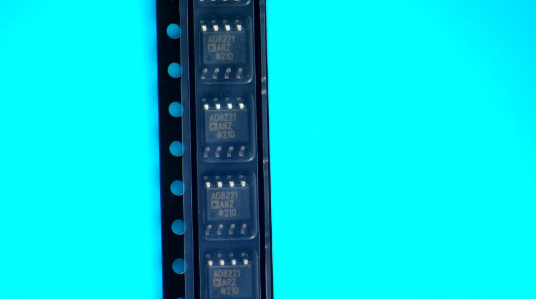

PACKAGING INFO
|
| Packaging Suffix |
R7 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Plastic |
| Tape Type |
Embossed |
|
|

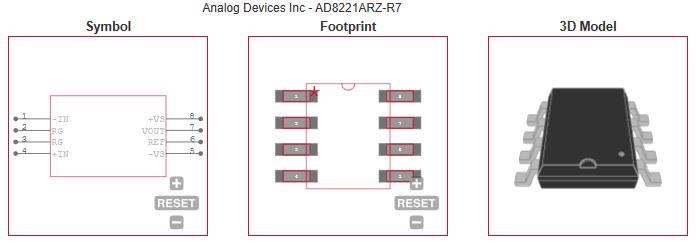

ECAD MODELS
|
|
|
APPLICATIONS
|
• Weigh scales
|
| • Industrial process controls |
| • Bridge amplifiers |
| • Precision data acquisition systems |
• Medical instrumentation
|
| • Strain gages |
| • Transducer interfaces |
| |
