• Calibrated rms response
|
• Excellent temperature stability
|
• Up to 30 dB input range at 2.5 GHz
|
• 700 mV rms, 10 dBm, re 50 Ω maximum input
|
• ±0.25 dB linear response up to 2.5 GHz
|
|
| CATALOG |
AD8361ARMZ-REEL7 COUNTRY OF ORIGIN
|
AD8361ARMZ-REEL7 PARAMETRIC INFO
|
AD8361ARMZ-REEL7 PACKAGE INFO
|
AD8361ARMZ-REEL7 MANUFACTURING INFO
|

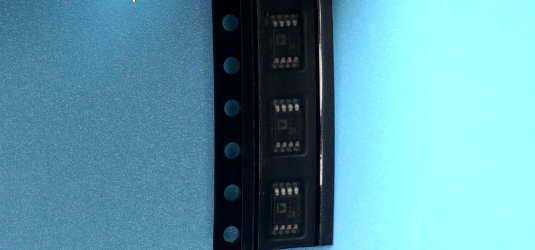

AD8361ARMZ-REEL7 PACKAGING INFO
|
AD8361ARMZ-REEL7 ECAD MODELS
|
AD8361ARMZ-REEL7 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Frequency Band (MHz) |
2500(Max) |
| Minimum Operating Supply Voltage (V) |
2.7 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Maximum Power Dissipation (mW) |
200 |
| Process Technology |
Bipolar |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Thermal Resistance (°C/W) |
200 |
|
|
PACKAGE INFO
|
| Supplier Package |
MSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
3 |
| Package Width (mm) |
3 |
| Package Height (mm) |
0.85 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3 |
| Package Overall Width (mm) |
4.9 |
| Package Overall Height (mm) |
1.1(Max) |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Micro Small Outline Package |
| Package Family Name |
SO |
| Jedec |
MO-187AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Suffix |
REEL7 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Reel Diameter (in) |
7 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
| APPLICATIONS |
| • Measurement of CDMA, W-CDMA, QAM, other complex modulation waveforms |
| • RF transmitter or receiver power measurement |
| |
