• High-Z FET separately powered input buffer RIN ≥ 1012 Ω, CIN ≤ 2 pF
|
• Precision dc output buffer
|
• Wide power supply voltage range Dual: ±2.4 V to ±18 V; single: 4.8 V to 36 V
|
• 4 mm × 4 mm LFCSP and 8 mm × 6 mm QSOP packages
|
• ESD protected
|
|
| CATALOG |
AD8436ARQZ-R7 COUNTRY OF ORIGIN
|
AD8436ARQZ-R7 PARAMETRIC INFO
|
AD8436ARQZ-R7 PACKAGE INFO
|
AD8436ARQZ-R7 MANUFACTURING INFO
|
AD8436ARQZ-R7 PACKAGING INFO
|
AD8436ARQZ-R7 ECAD MODELS
|
AD8436ARQZ-R7 FUNCTIONAL BLOCK DIAGRAM
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Maximum Single Supply Voltage (V) |
36 |
| Minimum Single Supply Voltage (V) |
4.8 |
| Maximum Dual Supply Voltage (V) |
±18 |
| Minimum Dual Supply Voltage (V) |
±2.4 |
| Maximum Supply Current (uA) |
365 |
| Maximum RMS Input Voltage (Vrms) |
3 |
| 3dB Bandwidth (kHz) |
1000 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Power Dissipation (mW) |
2100 |
| Temperature Flag |
Opr |
| Supplier Temperature Grade |
Industrial |
|
|
PACKAGE INFO
|
| Supplier Package |
QSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
20 |
| Lead Shape |
Gull-wing |
| PCB |
20 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.64 |
| Package Length (mm) |
8.66 |
| Package Width (mm) |
3.91 |
| Package Height (mm) |
1.65(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
8.66 |
| Package Overall Width (mm) |
5.99 |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Quarter Size Outline Package Or Quality Small Outline Package |
| Package Family Name |
SO |
| Jedec |
MO-137AD |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Number of Wave Cycles |
N/R |
|
|

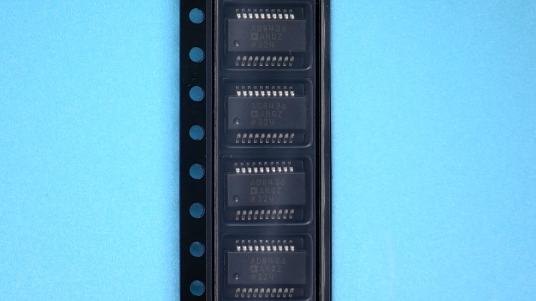

| PACKAGING INFO |
| Packaging Suffix |
R7 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
16 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Plastic |
| Tape Type |
Embossed |
|
|

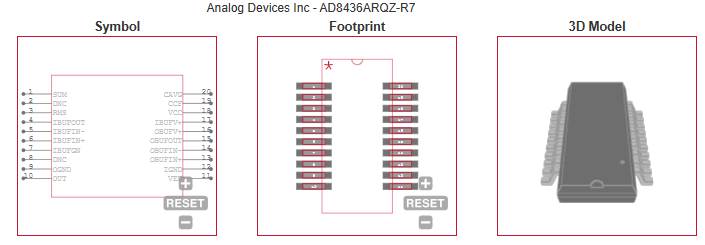

| ECAD MODELS |
 |
|

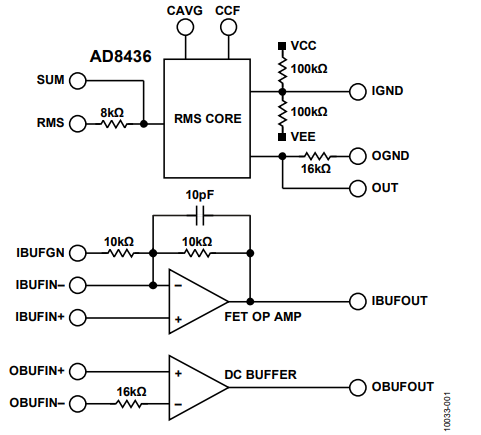

FUNCTIONAL BLOCK DIAGRAM
|
 |
| |
