| • Single-supply operation: 1.8 V to 5 V |
| • Offset voltage: 6 mV maximum |
| • Space-saving SOT-23 and SC70 packages |
| • Slew rate: 2.7 V/μs |
| • Bandwidth: 5 MHz |
| • Rail-to-rail input and output swing |
| • Low input bias current: 2 pA typical |
| • Low supply current @ 1.8 V: 450 μA maximum |
|
| CATALOG |
| AD8515ARTZ-REEL7 COUNTRY OF ORIGIN |
| AD8515ARTZ-REEL7 PARAMETRIC INFO |
| AD8515ARTZ-REEL7 PACKAGE INFO |
| AD8515ARTZ-REEL7 MANUFACTURING INFO |
| AD8515ARTZ-REEL7 PACKAGING INFO |
| AD8515ARTZ-REEL7 ECAD MODELS |
| AD8515ARTZ-REEL7 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
|
| PARAMETRIC INFO |
| Manufacturer Type |
Low Power Amplifier |
| Type |
Low Power Amplifier |
| Rail to Rail |
Rail to Rail Input/Output |
| Minimum Single Supply Voltage (V) |
1.8 |
| Number of Channels per Chip |
1 |
| Process Technology |
CMOS |
| Minimum PSRR (dB) |
65 |
| Typical Single Supply Voltage (V) |
3 |
| Maximum Single Supply Voltage (V) |
5 |
| Output Type |
CMOS |
| Typical Gain Bandwidth Product (MHz) |
5 |
| Maximum Input Offset Voltage (mV) |
6@5V |
| Maximum Input Offset Current (uA) |
0.00001@5V |
| Maximum Operating Supply Voltage (V) |
5 |
| Maximum Input Bias Current (uA) |
0.00003@5V |
| Minimum CMRR (dB) |
60 |
| Maximum Supply Voltage Range (V) |
<5.5 |
| Minimum CMRR Range (dB) |
60 to 65 |
| Typical Voltage Gain (dB) |
126.02 |
| Typical Slew Rate (V/us) |
2.7@5V |
| Typical Input Noise Voltage Density (nV/rtHz) |
22@5V |
| Typical Noninverting Input Current Noise Density (pA/rtHz) |
0.05@5V |
| Shut Down Support |
No |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Extended Industrial |
| Power Supply Type |
Single |
| Maximum Supply Current (mA) |
0.5@5V |
|
| |
| PACKAGE INFO |
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.6 |
| Package Height (mm) |
1.15 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.45(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-178AA |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
| |

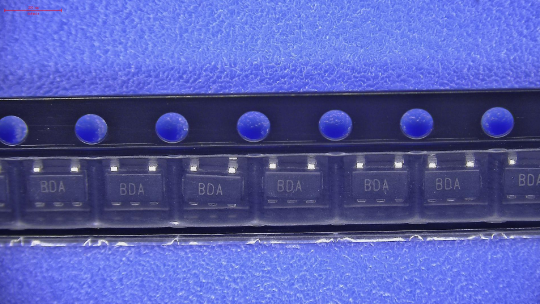

| PACKAGING INFO |
| Packaging Suffix |
REEL7 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Reel Diameter (in) |
7 |
| Packaging Document |
Link to Datasheet |
|
| |

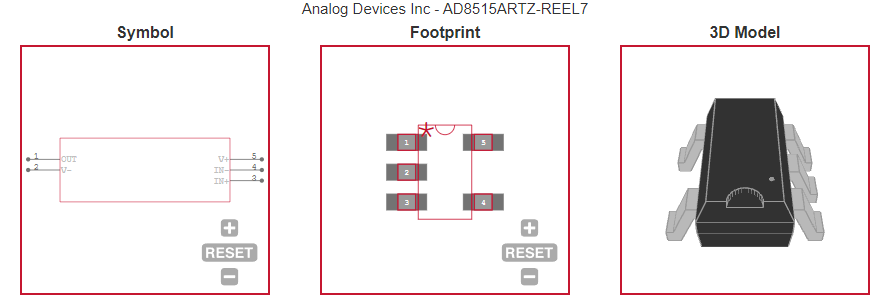

| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Portable communications |
| • Portable phones |
| • Sensor interfaces |
| • Laser scanners |
| • PCMCIA cards |
| • Battery-powered devices |
| • New generation phones |
| • Personal digital assistants |
| |
|
