• Single-supply operation: 4.5 V to 16 V
|
• Input capability beyond the rails
|
• Rail-to-rail output swing
|
| • Continuous output current: 35 mA
|
| • Peak output current: 250 mA |
| • Offset voltage: 10 mV |
| • Slew rate: 6 V/μs |
| • Unity gain stable with large capacitive loads |
| • Supply current: 700 μA per amplifier |
| • Qualified for automotive applications |
|
| CATALOG |

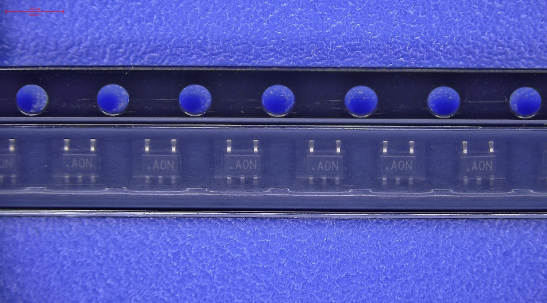

| AD8565AKSZ-REEL7 COUNTRY OF ORIGIN |
AD8565AKSZ-REEL7 PARAMETRIC INFO
|
AD8565AKSZ-REEL7 PACKAGE INFO
|
AD8565AKSZ-REEL7 MANUFACTURING INFO
|
AD8565AKSZ-REEL7 PACKAGING INFO
|
AD8565AKSZ-REEL7 EACD MODELS
|
| AD8565AKSZ-REEL7 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
|
PARAMETRIC INFO
|
| Manufacturer Type |
General Purpose Amplifier |
| type |
General Purpose Amplifier |
| Rail to Rail |
Rail to Rail Input/Output |
| Minimum Single Supply Voltage (V) |
4.5 |
| Number of Channels per Chip |
1 |
| Process Technology |
Bipolar |
| Minimum PSRR (dB) |
70 |
| Typical Single Supply Voltage (V) |
5|9|12|15 |
| Maximum Single Supply Voltage (V) |
16 |
| Maximum Quiescent Current (mA) |
0.85@16V |
| Typical Gain Bandwidth Product (MHz) |
5 |
| Maximum Input Offset Voltage (mV) |
10@16V |
| Maximum Input Offset Current (uA) |
0.08@16V |
| Maximum Operating Supply Voltage (V) |
16 |
| Maximum Input Bias Current (uA) |
0.6@16V |
| Minimum CMRR (dB) |
54 |
| Maximum Supply Voltage Range (V) |
16 to 17 |
| Minimum CMRR Range (dB) |
50 to 60 |
| Typical Voltage Gain (dB) |
80 |
| Typical Slew Rate (V/us) |
6@16V |
| Typical Output Current (mA) |
35@16V |
| Typical Input Noise Voltage Density (nV/rtHz) |
26@16V |
| Typical Noninverting Input Current Noise Density (pA/rtHz) |
0.8@16V |
| Shut Down Support |
no |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Power Supply Type |
Single |
|
|
PACKAGE INFO
|
| Supplier packaging |
SC-70 |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
5 |
| Pin shape |
Gull-wing |
| PCB |
5 |
| ears |
N/R |
| Pin spacing (mm) |
0.65 |
| Package length (mm) |
2 |
| Package width (mm) |
1.25 |
| Package height (mm) |
0.9 |
| Package diameter (mm) |
N/R |
| Mounting surface height (mm) |
1.1(Max) |
| Install |
Surface Mount |
| Packaging materials |
Plastic |
| package instruction |
Small Outline Transistor |
| Package series name |
SOT |
| JEDEC |
MO-203AA |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020D |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Au |
| Plating materials |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Suffix |
REEL7 |
| Package |
Tape and reel packaging |
| Packing quantity |
3000 |
| Reel Diameter (in) |
7 |
| packaging type file |
Link to datasheet |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• LCD reference drivers
|
| • Portable electronics |
| • Communications equipment |
| • Automotive infotainment systems |
| |
