• Single 3 V supply operation (2.7 V to 3.3 V)
|
• SNR = 58 dBc (to Nyquist)
|
• SFDR = 77 dBc (to Nyquist)
|
• Low power ADC core: 96 mW at 65 MSPS, 104 mW
@ 80 MSPS, 120 mW at 105 MSPS
|
• Differential input with 300 MHz bandwidth
|
• On-chip reference and sample-and-hold amplifier
|
• DNL = ±0.25 LSB
|
• Flexible analog input: 1 V p-p to 2 V p-p range
|
• Offset binary or twos complement data format
|
|
| CATALOG |

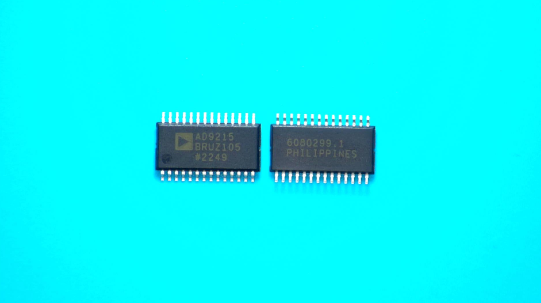

AD9215BRUZ-105 COUNTRY OF ORIGIN
|
AD9215BRUZ-105 PARAMETRIC INFO
|
AD9215BRUZ-105 PACKAGE INFO
|
AD9215BRUZ-105 MANUFACTURING INFO
|
AD9215BRUZ-105 PACKAGING INFO
|
AD9215BRUZ-105 ECAD MODELS
|
AD9215BRUZ-105 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Philippines
|
United States of America
|
|
PARAMETRIC INFO
|
| Converter Type |
General Purpose |
| Input Type |
Voltage |
| Architecture |
Pipelined |
| Resolution |
10bit |
| Number of ADCs |
1 |
| Sampling Rate |
105Msps |
| Digital Interface Type |
Parallel |
| Voltage Reference |
Internal|External |
| Minimum Positive Supply Voltage (V) |
2.7 |
| Maximum Positive Supply Voltage (V) |
3.3 |
| Input Signal Type |
Single-Ended|Differential |
| Polarity of Input Voltage |
Unipolar |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Integral Nonlinearity Error |
±1.2LSB |
| Signal to Noise Ratio |
58.5dB(Typ) |
| Sample and Hold |
Yes |
| Number of Input Channels |
1 |
| Single-Ended Input |
Yes |
| Differential Input |
Yes |
| Input Voltage |
1Vp-p/2Vp-p |
| No Missing Codes (bit) |
10 |
| Full Scale Error |
4%FSR |
| Differential Nonlinearity |
±1.2LSB |
| Voltage Supply Source |
Single |
| Minimum Single Supply Voltage (V) |
2.7 |
| Typical Single Supply Voltage (V) |
3 |
| Maximum Single Supply Voltage (V) |
3.3 |
| Digital Supply Support |
No |
| Typical Power Dissipation (mW) |
120 |
| Parallel Interface |
Parallel |
|
|
PACKAGE INFO
|
| Supplier Package |
TSSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
28 |
| Lead Shape |
Gull-wing |
| PCB |
28 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
9.7 |
| Package Width (mm) |
4.4 |
| Package Height (mm) |
1.05(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.2(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Thin Shrink Small Outline Package |
| Package Family Name |
SOP |
| Jedec |
MO-153AE |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
300 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
50 |
| Packaging Document |
Link to Datasheet |
|
|

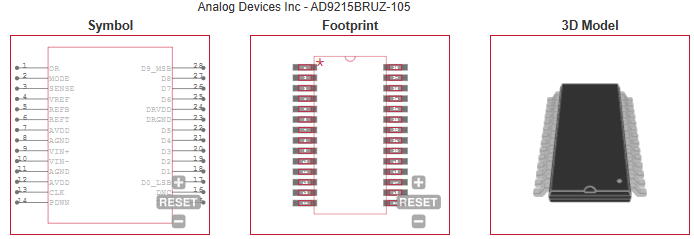

ECAD MODELS
|
|
|
APPLICATIONS
|
• Ultrasound equipment
|
| • IF sampling in communications receivers
|
| • Battery-powered instruments |
| • Hand-held scopemeters |
• Low cost digital oscilloscopes
|
|
|
| |
