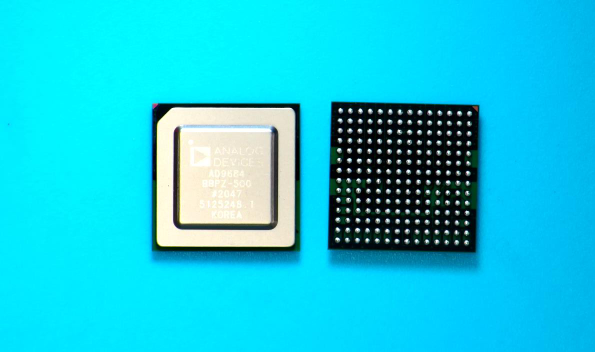

AD9684BBPZ-500 Analog Devices IC ADC 14BIT DUAL 500MSPS 196BGA

label:
2024/01/24 258



► Parallel LVDS (DDR) outputs
► 1.1 W total power per channel at 500 MSPS (default settings)
► SFDR = 85 dBFS at 170 MHz fIN (500 MSPS)
► SNR = 68.6 dBFS at 170 MHz fIN (500 MSPS)
► ENOB = 10.9 bits at 170 MHz fIN
► DNL = ±0.5 LSB
► INL = ±2.5 LSB
► Noise density = −153 dBFS/Hz at 500 MSPS
► 1.25 V, 2.50 V, and 3.3 V supply operation
► No missing codes
► Internal analog-to-digital converter (ADC) voltage reference
► Flexible input range and termination impedance
   ► 1.46 V p-p to 2.06 V p-p (2.06 V p-p nominal)
   ► 400 Ω, 200 Ω, 100 Ω, and 50 Ω differential
► SYNC± input allows multichip synchronization
► DDR LVDS (ANSI-644 levels) outputs
► 2 GHz usable analog input full power bandwidth
► >96 dB channel isolation/crosstalk
► Amplitude detect bits for efficient AGC implementation
► Two integrated wideband digital processors per channel
   ► 12-bit numerically controlled oscillator (NCO)
   ► 3 cascaded half-band filters
► Differential clock inputs
   ► Serial port control
   ► Integer clock divide by 2, 4, or 8
► Small signal dither



CATALOG
AD9684BBPZ-500 COUNTRY OF ORIGIN
AD9684BBPZ-500 PARAMETRIC INFO
AD9684BBPZ-500 PACKAGE INFO
AD9684BBPZ-500 MANUFACTURING INFO
AD9684BBPZ-500 PACKAGING INFO  
AD9684BBPZ-500 ECAD MODELS
AD9684BBPZ-500 FUNCTIONAL BLOCK DIAGRAM
AD9684BBPZ-500 APPLICATIONS



COUNTRY OF ORIGIN
Korea (Republic of)



PARAMETRIC INFO
Converter Type General Purpose
Input Type Voltage
Architecture Pipelined
Resolution 14bit
Number of ADCs 2
Sampling Rate 500Msps
Output Code 2's Complement|Offset Binary
Maximum Analog Input Voltage 2.06Vp-p
Minimum Analog Input Voltage 1.46Vp-p
Multiplying Function Yes
Digital Interface Type Parallel|LVDS
Voltage Reference Internal|External
Minimum Positive Supply Voltage (V) 1.22/2.44/3.2
Maximum Positive Supply Voltage (V) 1.28/2.56/3.4
Input Signal Type Differential
Polarity of Input Voltage Unipolar|Bipolar
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Supplier Temperature Grade Industrial
Minimum Storage Temperature (°C) -65
Maximum Storage Temperature (°C) 150
Integral Nonlinearity Error -4.5/5LSB
Signal to Noise Ratio 69.2dBFS(Typ)
Sample and Hold Yes
Number of Input Channels 2
Single-Ended Input No
Differential Input Yes
Input Voltage 2.06Vp-p
Maximum Supply Current (mA) 503
Full Scale Error ±6.5%FSR
Differential Nonlinearity -0.6/0.7LSB
Voltage Supply Source Analog and Digital
Minimum Single Supply Voltage (V) 1.22/2.44/3.2
Typical Single Supply Voltage (V) 1.25/2.5/3.3
Maximum Single Supply Voltage (V) 1.28/2.56/3.4
Digital Supply Support Yes
Typical Power Dissipation (mW) 2200
Parallel Interface Parallel LVDS



PACKAGE INFO
Supplier Package TEBGA
Basic Package Type Ball Grid Array
Pin Count 196
Lead Shape Ball
PCB 196
Tab N/R
Pin Pitch (mm) 0.8
Package Length (mm) 12
Package Width (mm) 12
Package Height (mm) 1.05
Package Diameter (mm) N/R
Seated Plane Height (mm) 1.38
Mounting Surface Mount
Package Weight (g) N/A
Package Material Plastic
Package Description Thermally Enhanced Ball Grid
Package Family Name BGA
Package Outline Link to Datasheet



MANUFACTURING INFO
MSL 3
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 30
Number of Reflow Cycle 3
Standard J-STD-020D
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Lead Finish(Plating) SnAgCu
Under Plating Material N/A
Terminal Base Material N/A



PACKAGING INFO
Packaging Tray
Quantity Of Packaging 189
Packaging Document Link to Datasheet

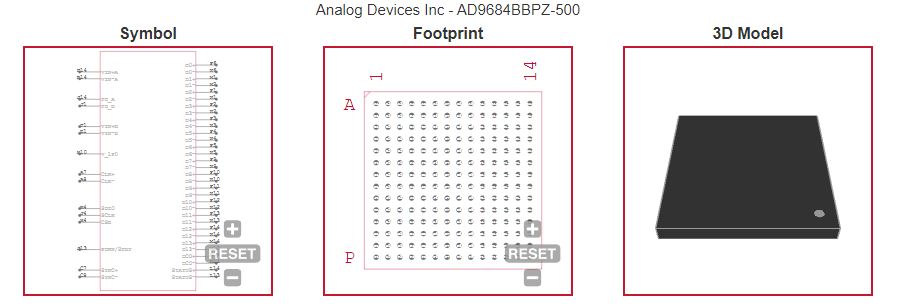

ECAD MODELS

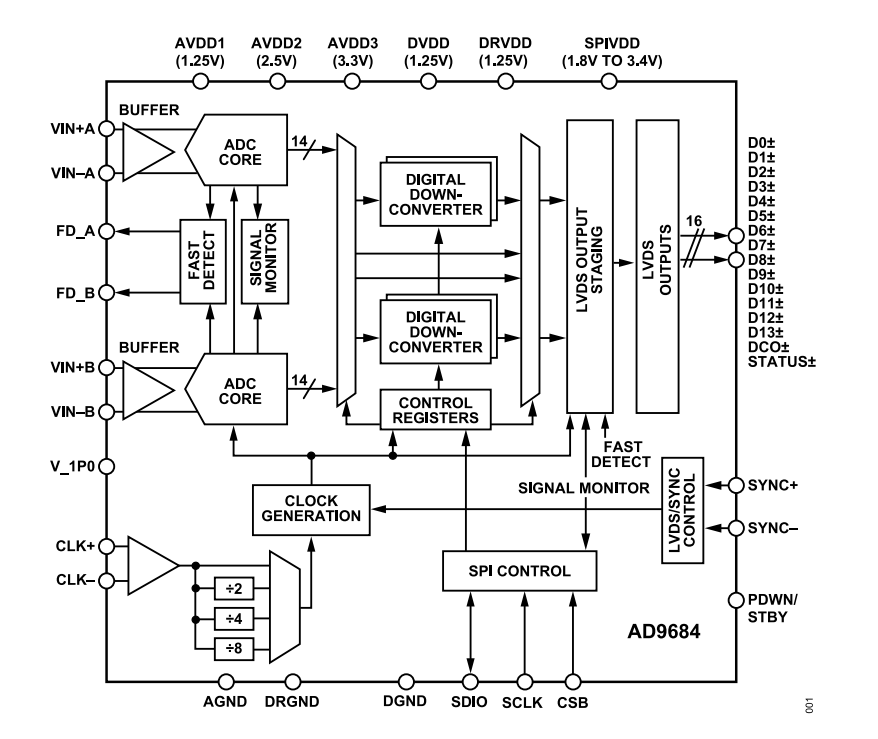

FUNCTIONAL BLOCK DIAGRAM


APPLICATIONS
► Communications
► Diversity multiband, multimode digital receivers
   ► 3G/4G, TD-SCDMA, W-CDMA, MC-GSM, LTE
► General-purpose software radios
► Ultrawideband satellite receiver
► Instrumentation (spectrum analyzers, network analyzers, integrated RF test solutions)
► Radar
► Digital oscilloscopes
► High speed data acquisition systems
► DOCSIS CMTS upstream receiver paths
► HFC digital reverse path receivers
