• 14-Bit 30 MSPS A/D Converter
|
• 30 MSPS Correlated Double Sampler (CDS)
|
• 4 dB 6 dB 6-Bit Pixel Gain Amplifier (PxGA®)
|
• 2 dB to 36 dB 10-Bit Variable Gain Amplifier (VGA)
|
• Low Noise Clamp Circuits
|
• Analog Preblanking Function
|
• Auxiliary Inputs with VGA and Input Clamp
|
|
| CATALOG |
AD9824KCPZ COUNTRY OF ORIGIN
|
AD9824KCPZ PARAMETRIC INFO
|
AD9824KCPZ PACKAGE INFO
|
AD9824KCPZ MANUFACTURING INFO
|
AD9824KCPZ PACKAGING INFO
|
AD9824KCPZ ECAD MODELS
|
AD9824KCPZ APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Korea (Republic of)
|
Singapore
|
|
PARAMETRIC INFO
|
| Category |
Video |
| Type |
CCD |
| Number of ADCs |
1 |
| Sampling Rate (ksps) |
30000(Min) |
| Resolution (bit) |
14 |
| Number of Channels per Chip |
1 |
| Number of ADC Inputs |
1 |
| Interface Type |
Parallel |
| Maximum Input Voltage Range |
1Vp-p(Min) |
| Minimum Operating Temperature (°C) |
-20 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Commercial |
| Power Supply Type |
Analog|Digital |
| Minimum Operating Supply Voltage (V) |
2.7 |
| Typical Operating Supply Voltage (V) |
3.3 |
| Maximum Operating Supply Voltage (V) |
3.6 |
|
|

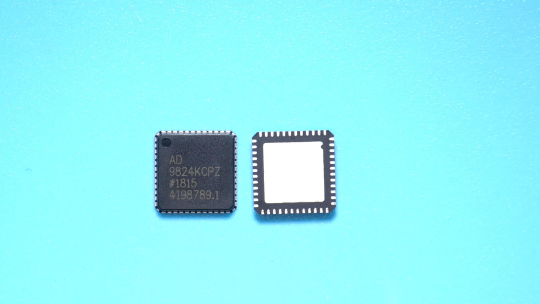

PACKAGE INFO
|
| Supplier Package |
LFCSP EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
48 |
| Lead Shape |
No Lead |
| PCB |
48 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
7 |
| Package Width (mm) |
7 |
| Package Height (mm) |
0.83 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.85 |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Lead Frame Chip Scale Package, Exposed Pad |
| Package Family Name |
CSP |
| Jedec |
MO-220VKKD-2 |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
260 |
| Packaging Document |
Link to Datasheet |
|
|

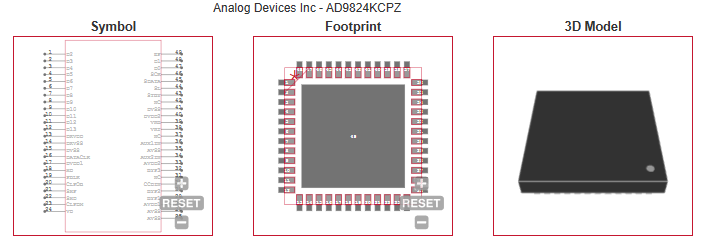

ECAD MODELS
|
|
|
APPLICATIONS
|
• High Performance Digital Still Cameras
|
• Industrial/Scientific Imaging
|
|
