• 400 MSPS internal clock speed
|
• Integrated 14-bit DAC
|
• Programmable phase/amplitude dithering
|
• 32-bit frequency tuning accuracy
|
• 14-bit phase tuning accuracy
|
|
| CATALOG |
AD9954YSVZ-REEL7 COUNTRY OF ORIGIN
|
AD9954YSVZ-REEL7 PARAMETRIC INFO
|
AD9954YSVZ-REEL7 PACKAGE INFO
|
AD9954YSVZ-REEL7 MANUFACTURING INFO
|
AD9954YSVZ-REEL7 PACKAGING INFO
|
AD9954YSVZ-REEL7 ECAD MODELS
|
AD9954YSVZ-REEL7 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Philippines
|
|
PARAMETRIC INFO
|
| Number of DACs |
1 |
| Resolution (bit) |
14 |
| Number of Outputs |
1 |
| Digital Interface Type |
Serial (2-Wire, 3-Wire, SPI) |
| Digital Supply Support |
Yes |
| Tuning Word Width (bit) |
32 |
| Output Type |
Current |
| Internal Frequency Multiplier |
Yes |
| Process Technology |
CMOS |
| Typical Output Current (mA) |
10 |
| Maximum Input Frequency (MHz) |
400 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
105 |
| Supplier Temperature Grade |
Extended Industrial |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
| Minimum Operating Supply Voltage (V) |
1.71 |
| Typical Operating Supply Voltage (V) |
1.8 |
| Maximum Operating Supply Voltage (V) |
1.89 |
|
|
PACKAGE INFO
|
| Supplier Package |
TQFP EP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
48 |
| Lead Shape |
Gull-wing |
| PCB |
48 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
7 |
| Package Width (mm) |
7 |
| Package Height (mm) |
1 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.2(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Thin Quad Flat Package, Exposed Pad |
| Package Family Name |
QFP |
| Jedec |
MS-026ABC |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

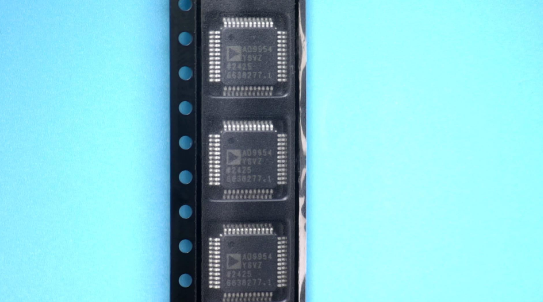

PACKAGING INFO
|
| Packaging Suffix |
REEL7 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
500 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
12 |
| Tape Width (mm) |
16 |
| Component Orientation |
Q2 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Plastic |
| Tape Type |
Embossed |
|
|

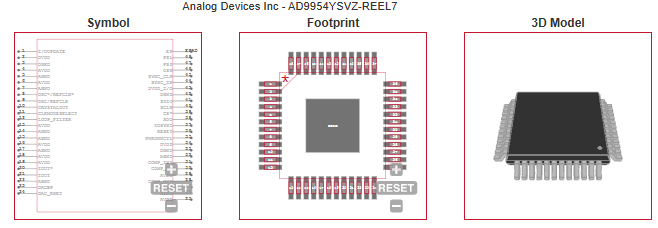

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Agile LO frequency synthesis |
| • Programmable clock generators |
| • FM chirp source for radar and scanning systems |
| • Automotive radars |
| • Test and measurement equipment |
| • Acousto-optic device drivers |
| |
