• Qualified for automotive applications (ADA4853-3W only)
|
• Ultralow disable current: 0.1 μA
|
• Low quiescent current: 1.4 mA/amplifier
|
• Ideal for standard definition video
|
• 0.5 dB flatness: 22 MHz
|
• Differential gain: 0.20%
|
• Differential phase: 0.10°
|
• Single-supply operation
|
• Low voltage offset: 1 mV
|
• Wide supply range: 2.65 V to 5 V
|
|
| CATALOG |
ADA4853-1AKSZ-R7 COUNTRY OF ORIGIN
|
ADA4853-1AKSZ-R7 PARAMETRIC INFO
|
ADA4853-1AKSZ-R7 PACKAGE INFO
|
ADA4853-1AKSZ-R7 MANUFACTURING INFO
|
ADA4853-1AKSZ-R7 PACKAGING INFO
|
ADA4853-1AKSZ-R7 ECAD MODELS
|
ADA4853-1AKSZ-R7 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Number of Circuits |
1 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Power Supply Type |
Single |
| Operating Supply Voltage (V) |
3 |
| Minimum Single Supply Voltage (V) |
2.65 |
| Typical Single Supply Voltage (V) |
3 |
| Maximum Single Supply Voltage (V) |
5 |
|
|
| PACKAGE INFO |
| Supplier Package |
SC-70 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
2 |
| Package Width (mm) |
1.25 |
| Package Height (mm) |
0.9 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-203AB |
| Package Outline |
Link to Datasheet |
|
|
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

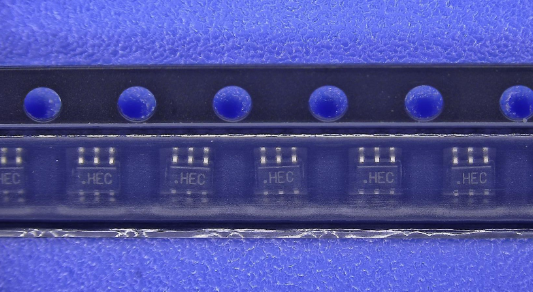

| PACKAGING INFO |
| Packaging Suffix |
R7 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Reel Diameter (in) |
7 |
| Packaging Document |
Link to Datasheet |
|
|

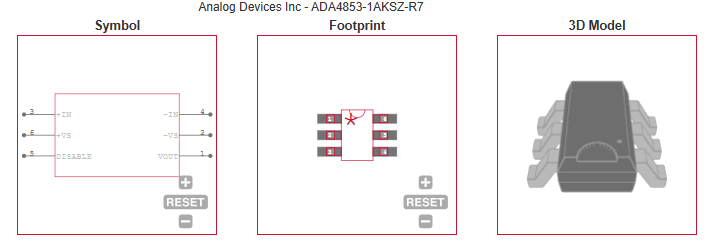

| ECAD MODELS |
|
|
| APPLICATIONS |
| • Automotive infotainment systems |
| • Automotive safety systems |
| • Portable multimedia players |
| • Video cameras |
| • Digital still cameras |
| • Consumer video |
| • Clock buffer |
| |
