• 460 kbit/s Transmission Rate
|
• Single 5 V Power Supply
|
• Compatible with RS-232 Input/Output Levels
|
• 0.1 μF Charge Pump Capacitors
|
• One Driver and One Receiver
|
• On-Board DC-DC Converter
|
|
| CATALOG |
ADM101EARMZ-REEL7 COUNTRY OF ORIGIN
|
ADM101EARMZ-REEL7 PARAMETRIC INFO
|
ADM101EARMZ-REEL7 PACKAGE INFO
|
ADM101EARMZ-REEL7 MANUFACTURING INFO
|
ADM101EARMZ-REEL7 PACKAGING INFO
|
ADM101EARMZ-REEL7 ECAD MODELS
|
ADM101EARMZ-REEL7 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Function |
Line Transceiver |
| Number of Transceivers |
1 |
| Number of Transmitters |
1 |
| Number of Receivers |
1 |
| Data Transmission Topology |
Point-to-Point |
| Transmitter Signal Type |
Single-Ended |
| Receiver Signal Type |
Single-Ended |
| Transmitter Communication Type |
RS-232 |
| Output Logic Level |
TTL|CMOS |
| Receiver Communication Type |
RS-232 |
| Power Down Mode |
Power Down |
| Input Logic Level |
TTL|CMOS |
| Interface Standards |
RS-232 |
| Number of Transmitter Enables |
0 |
| Number of Receiver Enables |
0 |
| Number of Drivers per Line |
1 |
| Number of Receivers per Line |
1 |
| Data Rate |
460Kbps |
| Driving Mode |
No |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
| Power Supply Type |
Single |
| Typical Single Supply Voltage (V) |
5 |
| Minimum Single Supply Voltage (V) |
4.5 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Maximum Supply Current (mA) |
2.5 |
|
|
PACKAGE INFO
|
| Supplier Package |
MSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
10 |
| Lead Shape |
Gull-wing |
| PCB |
10 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
3 |
| Package Width (mm) |
3 |
| Package Height (mm) |
0.85 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3 |
| Package Overall Width (mm) |
4.9 |
| Package Overall Height (mm) |
1.1(Max) |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Micro Small Outline Package |
| Package Family Name |
SO |
| Jedec |
MO-187BA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
12 Month |
| Shelf Life Condition |
40°C+90 % RH |
|
|

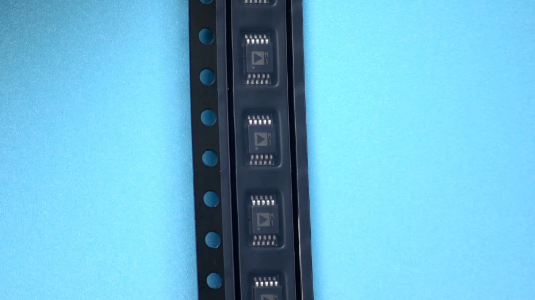

PACKAGING INFO
|
| Packaging Suffix |
REEL7 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Reel Diameter (in) |
7 |
| Packaging Document |
Link to Datasheet |
|
|

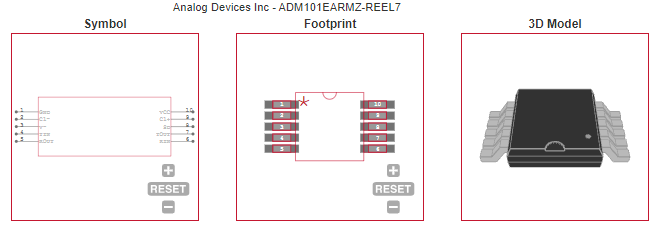

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Mobile Telephones |
| • Palmtop Computers |
| • PDAs |
| • Portable Instrumentation |
| • GPS Receivers |
| |
