• 2.5 kV rms signal and power isolated CAN transceiver
|
• 5 V operation on VCC
|
• 5 V or 3.3 V operation on VIO
|
• Complies with ISO 11898 standard
|
• High speed data rates of up to 1 Mbps
|
|
| CATALOG |
ADM3053BRWZ-REEL7 COUNTRY OF ORIGIN
|
ADM3053BRWZ-REEL7 PARAMETRIC INFO
|
ADM3053BRWZ-REEL7 PACKAGE INFO
|
ADM3053BRWZ-REEL7 MANUFACTURING INFO
|
ADM3053BRWZ-REEL7 PACKAGING INFO
|
ADM3053BRWZ-REEL7 ECAD MODELS
|
ADM3053BRWZ-REEL7 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Category |
Transceiver |
| Maximum Data Rate |
1Mbps |
| Standard Supported |
ISO 11898 |
| Number of Transceivers |
1 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-55 |
| Typical Operating Supply Voltage (V) |
5 |
| Minimum Operating Supply Voltage (V) |
4.5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Maximum Supply Current (mA) |
232 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC W |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
20 |
| Lead Shape |
Gull-wing |
| PCB |
20 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
13(Max) |
| Package Width (mm) |
7.6(Max) |
| Package Height (mm) |
2.35(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
2.65(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Wide Body |
| Package Family Name |
SO |
| Jedec |
MS-013AC |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

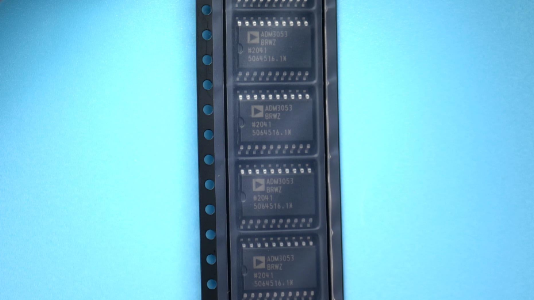

PACKAGING INFO
|
| Packaging Suffix |
REEL7 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
400 |
|
|

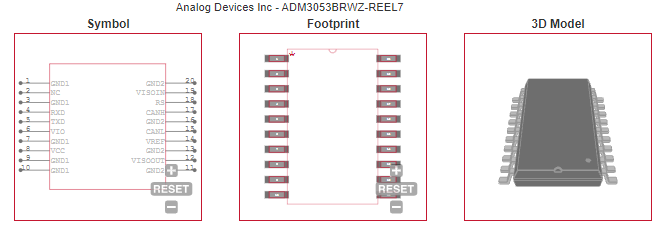

ECAD MODELS
|
|
|
| APPLICATIONS |
| • CAN data buses |
| • Industrial field networks |
| |
