• 5 kV rms signal isolated CAN transceiver
|
• 5 V or 3.3 V operation on VDD1
|
• 5 V operation on VDD2
|
| • VDD2SENSE to detect loss of power on VDD2
|
| • Complies with ISO 11898 standard |
| • High speed data rates of up to 1 Mbps |
| • Short-circuit protection on CANH and CANL against shorts to power/ground in 24 V systems |
| • Unpowered nodes do not disturb the bus |
| • Connect 110 or more nodes on the bus |
| • Thermal shutdown protection |
| • High common-mode transient immunity: >25 kV/μs |
| • Safety and regulatory approvals UL recognition 5000 V rms for 1 minute per UL 1577 VDE Certificates of ConformityDIN V VDE V 0884-10 (VDE V 0884-10): 2006-12 VIORM = 846 V peak |
| • Industrial operating temperature range: −40°C to +125°C |
|
| CATALOG |
| ADM3054WBRWZ-RL7 COUNTRY OF ORIGIN |
ADM3054WBRWZ-RL7 PARAMETRIC INFO
|
ADM3054WBRWZ-RL7 PACKAGE INFO
|
ADM3054WBRWZ-RL7 MANUFACTURING INFO
|
ADM3054WBRWZ-RL7 PACKAGING INFO
|
ADM3054WBRWZ-RL7 FUNCTIONAL BLOCK DIAGRAM
|
| ADM3054WBRWZ-RL7 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Taiwan (Province of China) |
|
PARAMETRIC INFO
|
| Category |
Transceiver |
| Maximum Data Rate |
1Mbps(Min) |
| Standard Supported |
ISO 11898 |
| Number of Transceivers |
1 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Rating |
Industrial |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-55 |
| Typical Operating Supply Voltage (V) |
3.3|5 |
| Minimum Operating Supply Voltage (V) |
3|4.75 |
| Maximum Operating Supply Voltage (V) |
5.25|5.5 |
| Maximum Supply Current (mA) |
3|75 |
|
|
PACKAGE INFO
|
| Supplier packaging |
SOIC W |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
16 |
| Pin shape |
Gull-wing |
| PCB |
16 |
| ears |
N/R |
| Pin spacing (mm) |
1.27 |
| Package length (mm) |
10.5(Max) |
| Package width (mm) |
7.6(Max) |
| Package height (mm) |
2.35(Max) |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
10.5(Max) |
| Package Overall Width (mm) |
10.65(Max) |
| Package Overall Height (mm) |
2.65(Max) |
| Mounting surface height (mm) |
2.65(Max) |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Small Outline IC Wide Body |
| Package series name |
SO |
| JEDEC |
MS-013AA |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
not applicable |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
|
|
PACKAGING INFO
|
| Packaging Suffix |
RL7 |
| Package |
Tape and reel packaging |
| Packing quantity |
400 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
12 |
| Tape Width (mm) |
16 |
| Component Orientation |
Q1 |
| packaging type file |
Link to datasheet |
| Tape Material |
Plastic |
| Tape Type |
Embossed |
|
|

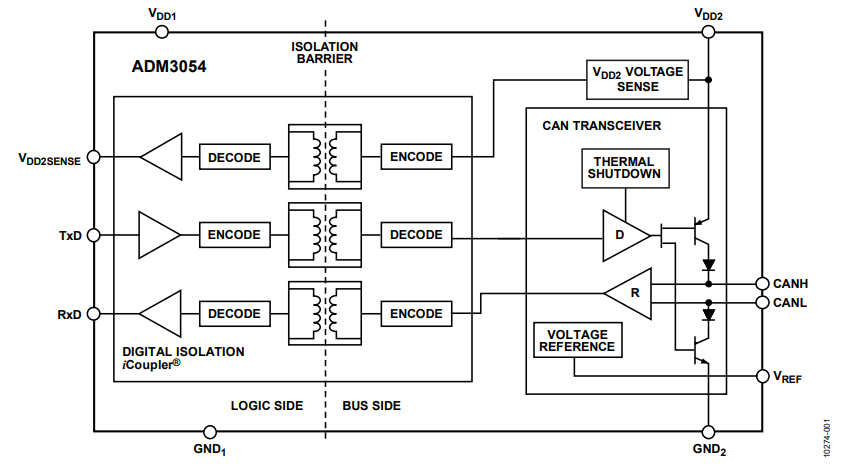

FUNCTIONAL BLOCK DIAGRAM
|
|
|
APPLICATIONS
|
• CAN data buses
|
| • Industrial field networks |
| |
| |
