• 460 kbps data rate
|
• Specified at 3.3 V
|
• Meets EIA-232E specifications
|
• 0.1 μF charge pump capacitors
|
• Low power shutdown (ADM3222 and ADM1385)
|
• PDIP, SOIC_N, SOIC_W, SSOP, and TSSOP options
|
• Upgrade for MAX3222/MAX3232 and LTC1385
|
• ESD protection to IEC 1000-4-2 (801.2)
on RS-232 pins (ADM3202 only)
|
• ±8 kV: contact discharge
|
• ±15 kV: air gap discharge
|
|
| CATALOG |
| ADM3202ARNZ-REEL COUNTRY OF ORIGIN |
ADM3202ARNZ-REEL PARAMETRIC INFO
|
ADM3202ARNZ-REEL PACKAGE INFO
|
ADM3202ARNZ-REEL MANUFACTURING INFO
|
ADM3202ARNZ-REEL PACKAGING INFO
|
ADM3202ARNZ-REEL ECAD MODELS
|
ADM3202ARNZ-REEL FUNCTIONAL BLOCK DIAGRAM
|
ADM3202ARNZ-REEL APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Function |
Line Transceiver |
| Number of Transceivers |
1 |
| Number of Transmitters |
2 |
| Number of Receivers |
2 |
| Data Transmission Topology |
Point-to-Point |
| Transmitter Signal Type |
Single-Ended |
| Receiver Signal Type |
Single-Ended |
| Transmitter Communication Type |
RS-232 |
| Charge Pump |
Yes |
| Input Logic Level |
CMOS |
| Output Logic Level |
CMOS |
| Receiver Communication Type |
RS-232 |
| Power Down Mode |
Shutdown |
| Typical Shutdown Current (uA) |
0.0001 |
| Fail Safe |
Open/Short |
| Interface Standards |
EIA/TIA-232-E|RS-232|V.28 |
| Number of Transmitter Enables |
0 |
| Number of Receiver Enables |
0 |
| Number of Drivers per Line |
1 |
| Number of Receivers per Line |
1 |
| Data Rate |
460Kbps(Min) |
| Driving Mode |
3-State |
| Process Technology |
CMOS |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
| Power Supply Type |
Single |
| Typical Single Supply Voltage (V) |
3.3 |
| Minimum Single Supply Voltage (V) |
3 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Maximum Supply Current (mA) |
12 |
| Isolation |
No |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC N |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
16 |
| Lead Shape |
Gull-wing |
| PCB |
16 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
10(Max) |
| Package Width (mm) |
4(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
10(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Narrow Body |
| Package Family Name |
SO |
| Jedec |
MS-012AC |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
260 |
| Packaging Document |
Link to Datasheet |
|
|

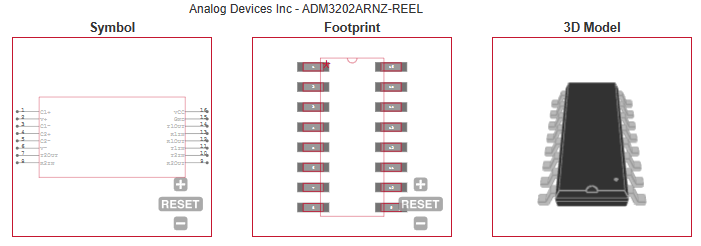

ECAD MODELS
|
|
|

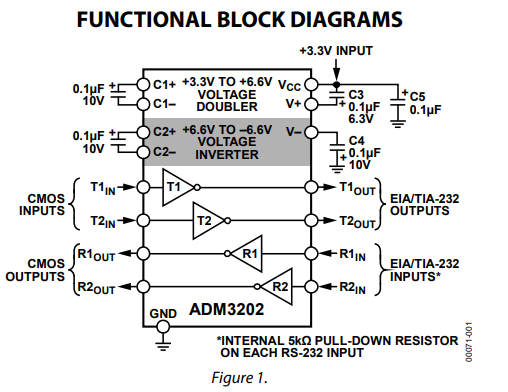

FUNCTIONAL BLOCK DIAGRAM
|
|
|
APPLICATIONS
|
• General-purpose RS-232 data link
|
• Portable instruments
|
• Printers, palmtop computers, PDAs
|
|
| |
