• Up to 400 positions in a 4-row design
|
• 5 mm, 7 mm, 9 mm, 10 mm, 11 mm, 12 mm 14 mm & 16 mm stack heights
|
• Slim 5 mm width body design
|
• Edge Rate® contact system optimized for signal integrity performance
|
• Open-pin-field for grounding and routing flexibility
|
• Supports 64 Gbps PAM4 (32 Gbps NRZ) applications
|
|
| CATALOG |
ADM6-60-01.5-L-4-2-A-TR COUNTRY OF ORIGIN
|
ADM6-60-01.5-L-4-2-A-TR PARAMETRIC INFO
|
ADM6-60-01.5-L-4-2-A-TR PACKAGE INFO
|
ADM6-60-01.5-L-4-2-A-TR MANUFACTURING INFO
|
ADM6-60-01.5-L-4-2-A-TR PACKAGING INFO
|
ADM6-60-01.5-L-4-2-A-TR ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
United States of America
|
Taiwan (Province of China)
|
Costa Rica
|
Viet Nam
|
Singapore
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
Open Pin Field Array |
| Gender |
HDR |
| Number of Contacts |
240 |
| Termination Method |
Solder |
| Tradename |
Accelerate® |
| Maximum Current Rating (A) |
1.34/Contact |
| Maximum Voltage Rating |
219VDC|155VAC |
| Housing Material |
Liquid Crystal Polymer |
| Housing Color |
Black |
| Contact Material |
Copper Alloy |
| Contact Plating |
Gold Over Nickel |
| Number of Rows |
4 |
| Maximum Contact Resistance (mOhm) |
15 |
| Polarization Type |
Dual Key |
| Insulation Resistance (MOhm) |
45000 |
| Speed Rating (Gbps) |
64 |
| Operating Temperature (°C) |
-55 to 125 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
125 |
| Mating Cycle (Cycles) |
100 |
| Maximum Terminal Width (mm) |
0.46(Typ) |
| Mounting Styles |
Alignment Pin |
| Contact Plating Thickness |
(0.25/1.27)um |
| Tail Shape |
Ball |
| Mounting Ears |
No |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
0.635 |
| Body Orientation |
Straight |
| Mounting |
Surface Mount |
| Product Length (mm) |
42.82 |
| Product Length (Ejector Open) (mm) |
N/R |
| Product Depth (mm) |
5 |
| Product Height (mm) |
4.1 |
| Length Tolerance (mm) |
±0.13 |
| Depth Tolerance (mm) |
±0.13 |
| Height Tolerance (mm) |
N/A |
| Product Weight (g) |
N/A |
| Maximum Product Depth (mm) |
5.13 |
| Maximum Product Height (mm) |
N/A |
| Maximum Product Length (mm) |
42.95 |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020E |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
| PACKAGING INFO |
| Packaging Suffix |
TR |

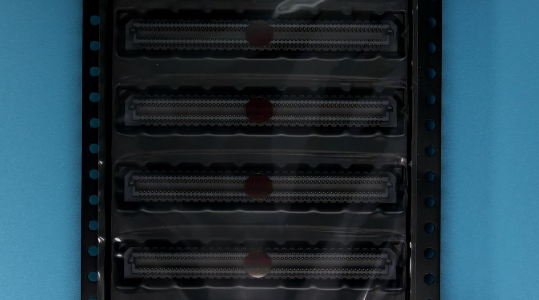

| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
| |

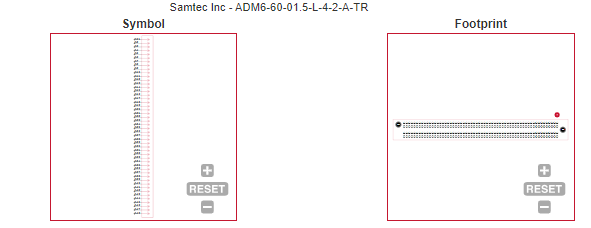

| ECAD MODELS |
 |
| |
