• Inverts Input Supply Voltage
|
• 99% Voltage Conversion Efficiency
|
• 25 mA Output Current
|
• Shutdown Function
|
• Requires Only Two Capacitors
|
• 1 mF Capacitors
|
• 18 V Output Resistance
|
|
| CATALOG |
ADM8828ARTZ-REEL7 COUNTRY OF ORIGIN
|
ADM8828ARTZ-REEL7 PARAMETRIC INFO
|
ADM8828ARTZ-REEL7 PACKAGE INFO
|
ADM8828ARTZ-REEL7 MANUFACTURING INFO
|
ADM8828ARTZ-REEL7 PACKAGING INFO
|
ADM8828ARTZ-REEL7 ECAD MODELS
|
ADM8828ARTZ-REEL7 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Function |
Inverting |
| Efficiency (%) |
90(Typ) |
| Minimum Operating Supply Voltage (V) |
1.5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Output Voltage (V) |
-1.5 to -5.5 |
| Maximum Supply Current (mA) |
1 |
| Output Type |
Adjustable |
| Output Current (mA) |
25(Min) |
| Maximum Switching Frequency (kHz) |
190 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Power Dissipation (mW) |
570 |
| Supplier Temperature Grade |
Industrial |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.6 |
| Package Height (mm) |
1.15 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.45(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-178AB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
| |

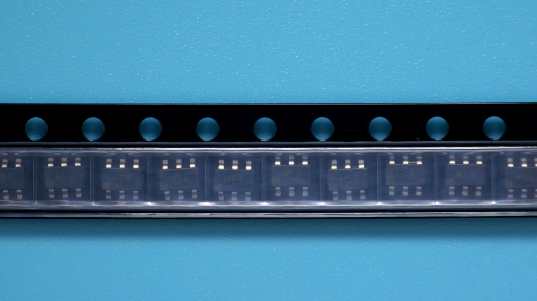

| PACKAGING INFO |
| Packaging Suffix |
REEL7 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Reel Diameter (in) |
7 |
| Packaging Document |
Link to Datasheet |
|
| |

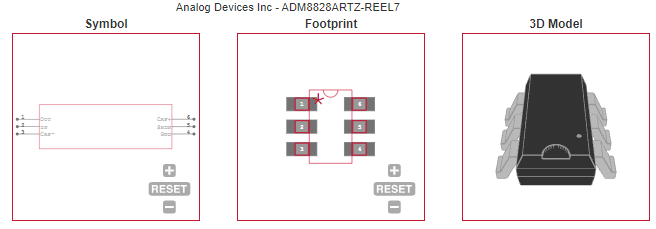

| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Handheld Instruments |
| • LCD Panels |
| • Cellular Phones |
| • PDAs |
| • Remote Data Acquisition |
| • Op Amp Power Supplies |
| |
