| • Initial accuracy: ±5 mV/±6 mV maximum |
| • Initial accuracy error: ±0.24%/±0.24% |
| • Low TCVOUT: 25 ppm/°C maximum |
| • Load regulation: 70 ppm/mA |
| • Line regulation: 25 ppm/V |
• Wide operating ranges
- 2.4 V to 18 V for ADR380
- 2.8 V to 18 V for ADR381 |
| • Low power: 120 μA maximum |
| • High output current: 5 mA |
| • Wide temperature range: −40°C to +85°C |
| • Tiny 3-lead SOT-23 package with standard pinout |
|
| CATALOG |
| ADR380ARTZ-REEL7 COUNTRY OF ORIGIN |
| ADR380ARTZ-REEL7 PARAMETRIC INFO |
| ADR380ARTZ-REEL7 PACKAGE INFO |
| ADR380ARTZ-REEL7 MANUFACTURING INFO |
| ADR380ARTZ-REEL7 PACKAGING INFO |
| ADR380ARTZ-REEL7 ECAD MODELS |
| ADR380ARTZ-REEL7 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
|
| PARAMETRIC INFO |
| Topology |
Series |
| Reference Type |
Precision |
| Output Voltage (V) |
2.048 |
| Initial Accuracy |
0.24% |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Load Regulation |
70ppm/mA |
| Line Regulation |
25ppm/V |
| Maximum Input Voltage (V) |
18 |
| Maximum Output Current (mA) |
5 |
| Maximum Temperature Coefficient |
25ppm/°C |
|
| |
| PACKAGE INFO |
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
3 |
| Lead Shape |
Gull-wing |
| PCB |
3 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.03(Max) |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.3 |
| Package Height (mm) |
0.95 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.12(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
TO-236AB |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
300 |
| Wave Solder Time (Sec) |
60 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
|
| |

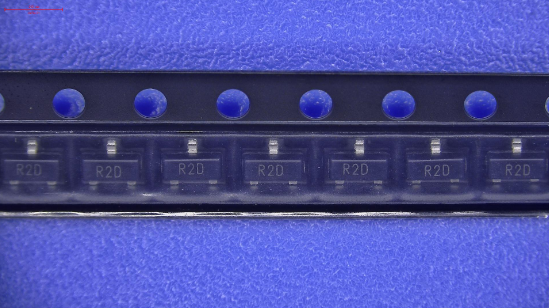

| PACKAGING INFO |
| Packaging Suffix |
REEL7 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Reel Diameter (in) |
7 |
| Packaging Document |
Link to Datasheet |
|
| |

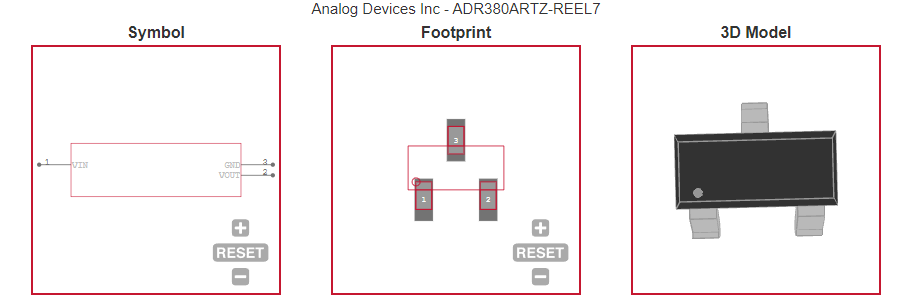

| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Battery-powered instrumentation |
| • Portable medical instruments |
| • Data acquisition systems |
| • Industrial process control systems |
| • Hard disk drives |
| • Automotive |
|
