• Precision 1.000 V voltage reference
|
• Ultracompact 3 mm × 3 mm SOT-23 package
|
• No external capacitor required
|
• Low output noise: 4 μV p-p (0.1 Hz to 10 Hz)
|
• Initial accuracy: ±0.35% maximum
|
• Temperature coefficient: 70 ppm/°C maximum
|
• Operating current range: 100 μA to 10 mA
|
|
| CATALOG |
ADR510ARTZ-REEL7 COUNTRY OF ORIGIN
|
ADR510ARTZ-REEL7 PARAMETRIC INFO
|
ADR510ARTZ-REEL7 PACKAGE INFO
|
ADR510ARTZ-REEL7 MANUFACTURING INFO
|
ADR510ARTZ-REEL7 PACKAGING INFO
|
ADR510ARTZ-REEL7 ECAD MODELS
|
ADR510ARTZ-REEL7 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Topology |
Shunt |
| Reference Type |
Precision |
| Output Voltage (V) |
1 |
| Initial Accuracy |
0.35% |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Output Current (mA) |
10 |
| Maximum Temperature Coefficient |
85ppm/°C |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
3 |
| Lead Shape |
Gull-wing |
| PCB |
3 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.03(Max) |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.3 |
| Package Height (mm) |
0.95 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.12(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
TO-236AB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
FeNi Alloy |
| Number of Wave Cycles |
N/R |
|
|

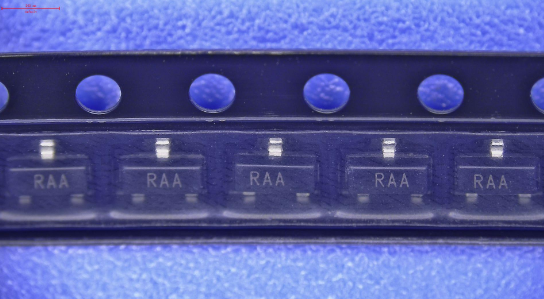

PACKAGING INFO
|
| Packaging Suffix |
REEL7 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Q3 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Plastic |
| Tape Type |
Embossed |
|
|

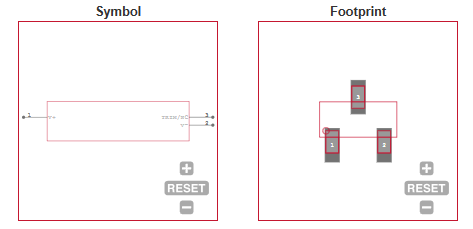

ECAD MODELS
|
 |
|
| APPLICATIONS |
| • Precision data acquisition systems |
| • Battery-powered equipment Cellular phone Notebook computer PDA GPS |
| • 3 V/5 V, 8-/12-bit data converters |
| • Portable medical instruments |
| • Industrial process control systems |
| • Precision instruments |
| |
