• Low Current Consumption:
As Low as 120 μA (typ) in Duty-Cycle Mode
|
• Wide Supply Range: 2.3 V to 5.5 V
|
• Programmable Gain: 1 V/V to 128 V/V
|
| • Programmable Data Rates: Up to 2 kSPS |
| • Up to 20-Bits Effective Resolution |
| • Simultaneous 50-Hz and 60-Hz Rejection at
20 SPS with Single-Cycle Settling Digital Filte |
| • Two Differential or Four Single-Ended Inputs
|
| • Dual Matched Programmable Current Sources:
10 μA to 1.5 mA
|
| • Internal 2.048-V Reference: 5 ppm/°C (typ) Drift |
| • Internal 2% Accurate Oscillator |
| • Internal Temperature Sensor:
0.5°C (typ) Accuracy |
| • SPI-Compatible Interface (Mode 1)
|
| • Package: 3.5-mm × 3.5-mm × 0.9-mm VQFN
|
|
| CATALOG |

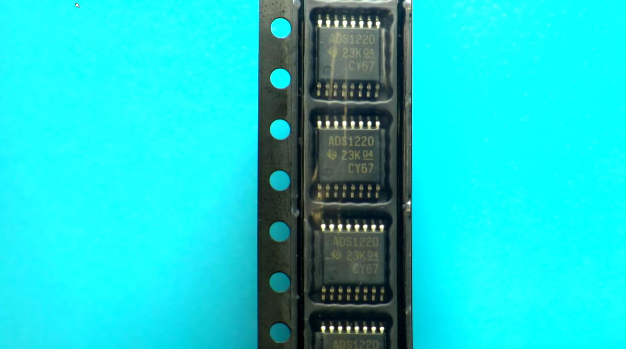

| ADS1220IPWR COUNTRY OF ORIGIN |
ADS1220IPWR PARAMETRIC INFO
|
ADS1220IPWR PACKAGE INFO
|
ADS1220IPWR MANUFACTURING INFO
|
ADS1220IPWR PACKAGING INFO
|
ADS1220IPWR ECAD MODELS
|
ADS1220IPWR APPLICATIONS
|
|
| COUNTRY OF ORIGIN |
| Malaysia |
|
PARAMETRIC INFO
|
| Converter Type |
General Purpose |
| Input Type |
Voltage |
| Architecture |
Delta-Sigma |
| Resolution |
24bit |
| Number of ADCs |
1 |
| Sampling Rate |
2ksps |
| Output Code |
Binary 2's Complement |
| Maximum Analog Input Voltage |
7.3V |
| Minimum Analog Input Voltage |
-3.1V |
| Multiplying Function |
Yes |
| Digital Interface Type |
Serial (5-Wire, 4-Wire, 3-Wire, SPI) |
| Voltage Reference |
Internal|External |
| Minimum Positive Supply Voltage (V) |
2.3 |
| Maximum Positive Supply Voltage (V) |
2.75/5.5 |
| Minimum Negative Supply Voltage (V) |
0.1/2.3 |
| Maximum Negative Supply Voltage (V) |
0.1/2.75 |
| Input Signal Type |
Single-Ended|Differential |
| Polarity of Input Voltage |
Bipolar |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-60 |
| Maximum Storage Temperature (°C) |
150 |
| Integral Nonlinearity Error |
±15ppm of FSR |
| Sample and Hold |
No |
| Number of Input Channels |
4|2 |
| Single-Ended Input |
Yes |
| Differential Input |
Yes |
| Input Voltage |
±2.5V |
| Maximum Supply Current (mA) |
0.89(Typ) |
| No Missing Codes (bit) |
24 |
| Full Scale Error |
±0.1%FSR |
| Voltage Supply Source |
Single|Dual |
| Minimum Single Supply Voltage (V) |
2.3 |
| Typical Single Supply Voltage (V) |
3.3 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Minimum Dual Supply Voltage (V) |
±2.3 |
| Typical Dual Supply Voltage (V) |
±2.5 |
| Maximum Dual Supply Voltage (V) |
±2.75 |
| Digital Supply Support |
Yes |
| Typical Power Dissipation (mW) |
2.1 |
| Serial Interface |
Serial SPI |
|
|
PACKAGE INFO
|
| Supplier Package |
TSSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
16 |
| Lead Shape |
Gull-wing |
| PCB |
16 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
5.1(Max) |
| Package Width (mm) |
4.5(Max) |
| Package Height (mm) |
1.05(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5.1(Max) |
| Package Overall Width (mm) |
6.6(Max) |
| Package Overall Height (mm) |
1.2(Max) |
| Seated Plane Height (mm) |
1.2(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Thin Shrink Small Outline Package |
| Package Family Name |
SO |
| Jedec |
MO-153 |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
13 |
| Reel Width (mm) |
12.4 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• Temperature Sensor Measurements:
– Thermistors
– Thermocouples
– Resistance Temperature Detectors (RTDs):
2-, 3-, or 4-Wire Types
|
• Resistive Bridge Sensor Measurements:
– Pressure Sensors
– Strain Gauges
– Weigh Scales
|
| • Portable Instrumentation
|
| • Factory Automation and Process Control
|
|
| |
