• Low Power Consumption: As Low as 280 µA
|
• Low-Noise PGA: 19 nVRMS at Gain = 128
|
• Programmable Gain: 1 to 128
|
• Programmable Data Rates: 2.5 SPS to 4 kSPS
|
|
| CATALOG |
ADS124S08IPBS COUNTRY OF ORIGIN
|
ADS124S08IPBS PARAMETRIC INFO
|
ADS124S08IPBS PACKAGE INFO
|
ADS124S08IPBS MANUFACTURING INFO
|
ADS124S08IPBS PACKAGING INFO
|
ADS124S08IPBS ECAD MODELS
|
ADS124S08IPBS APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Converter Type |
General Purpose |
| Input Type |
Voltage |
| Architecture |
Delta-Sigma |
| Resolution |
24bit |
| Number of ADCs |
1 |
| Sampling Rate |
4ksps |
| Output Code |
Binary 2's Complement |
| Maximum Analog Input Voltage |
5.8V |
| Minimum Analog Input Voltage |
-3.1V |
| Multiplying Function |
Yes |
| Digital Interface Type |
Serial (4-Wire, SPI) |
| Voltage Reference |
Internal|External |
| Minimum Positive Supply Voltage (V) |
2.7 |
| Input Signal Type |
Pseudo-Differential|Differential |
| Maximum Positive Supply Voltage (V) |
3.6/5.25 |
| Minimum Negative Supply Voltage (V) |
1.5 |
| Maximum Negative Supply Voltage (V) |
2.625 |
| Polarity of Input Voltage |
Bipolar |
| Minimum Operating Temperature (°C) |
-50 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-60 |
| Maximum Storage Temperature (°C) |
150 |
| Integral Nonlinearity Error |
15ppm of FSR |
| Sample and Hold |
No |
| Number of Input Channels |
12 |
| Single-Ended Input |
No |
| Differential Input |
Yes |
| Input Voltage |
±2.5V |
| Maximum Supply Current (mA) |
0.25(Typ) |
| No Missing Codes (bit) |
24 |
| Full Scale Error |
200ppm |
| Voltage Supply Source |
Single|Dual |
| Minimum Single Supply Voltage (V) |
2.7 |
| Typical Single Supply Voltage (V) |
3.3|5 |
| Maximum Single Supply Voltage (V) |
5.25 |
| Minimum Dual Supply Voltage (V) |
±1.5 |
| Typical Dual Supply Voltage (V) |
±2.5 |
| Maximum Dual Supply Voltage (V) |
±2.625 |
| Digital Supply Support |
Yes |
| Typical Power Dissipation (mW) |
1.75 |
| Serial Interface |
Serial SPI |
|
|

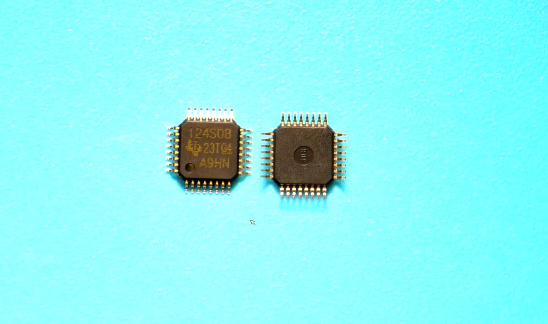

PACKAGE INFO
|
| Supplier Package |
TQFP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
32 |
| Lead Shape |
Gull-wing |
| PCB |
32 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
5.05(Max) |
| Package Width (mm) |
5.05(Max) |
| Package Height (mm) |
1.05(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.2(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Thin Quad Flat Package |
| Package Family Name |
QFP |
| Jedec |
MS-026AAA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
250 |
| Packaging Document |
Link to Datasheet |
|
|

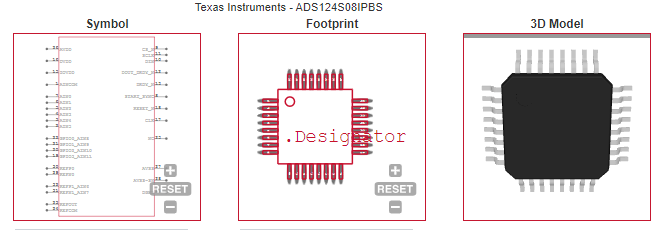

ECAD MODELS
|
|
|
APPLICATIONS
|
• Sensor Transducers and Transmitters:Temperature, Pressure, Strain, Flow
|
• PLC and DCS Analog Input Modules
|
• Temperature Controllers
|
• Climate Chambers, Industrial Ovens
|
|
