| ● 24 BITS—NO MISSING CODES |
| ● 19 BITS EFFECTIVE RESOLUTION UP TO
40kHz DATA RATE |
| ● LOW NOISE: 2.5ppm |
| ● DIFFERENTIAL INPUTS |
| ● INL: 0.0015% (max) |
| ● EXTERNAL REFERENCE (0.5V to 5V) |
| ● POWER-DOWN MODE |
| ● SYNC MODE |
|
| CATALOG |
| ADS1252U/2K5 COUNTRY OF ORIGIN |
| ADS1252U/2K5 PARAMETRIC INFO |
| ADS1252U/2K5 PACKAGE INFO |
| ADS1252U/2K5 MANUFACTURING INFO |
| ADS1252U/2K5 PACKAGING INFO |
| ADS1252U/2K5 ECAD MODELS |
| ADS1252U/2K5 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
| Japan |
| Malaysia |
| Philippines |
| Taiwan (Province of China) |
| Thailand |
|
| PARAMETRIC INFO |
| Converter Type |
General Purpose |
| Input Type |
Voltage |
| Architecture |
Delta-Sigma |
| Resolution |
24bit |
| Number of ADCs |
1 |
| Sampling Rate |
41ksps |
| Digital Interface Type |
Serial (2-Wire) |
| Voltage Reference |
External |
| Minimum Positive Supply Voltage (V) |
4.75 |
| Maximum Positive Supply Voltage (V) |
5.25 |
| Input Signal Type |
Single-Ended|Differential |
| Polarity of Input Voltage |
Bipolar |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Integral Nonlinearity Error |
±0.0015%FSR |
| Sample and Hold |
No |
| Number of Input Channels |
1 |
| Single-Ended Input |
Yes |
| Differential Input |
Yes |
| Input Voltage |
±5.25V |
| No Missing Codes (bit) |
24 |
| Full Scale Error |
1%FSR |
| Differential Nonlinearity |
±1LSB |
| Voltage Supply Source |
Single |
| Minimum Single Supply Voltage (V) |
4.75 |
| Typical Single Supply Voltage (V) |
5 |
| Maximum Single Supply Voltage (V) |
5.25 |
| Digital Supply Support |
No |
| Typical Power Dissipation (mW) |
40 |
| Maximum Power Dissipation (mW) |
50 |
|
| |
| PACKAGE INFO |
| Supplier Package |
SOIC |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
3.98(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.19(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
| |
| PACKAGING INFO |
| Packaging Suffix |
2K5 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
13 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|
| |

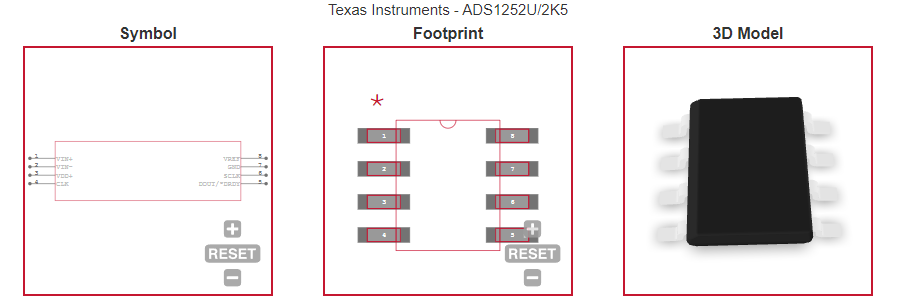

| ECAD MODELS |
|
|
| APPLICATIONS |
| ● CARDIAC DIAGNOSTICS |
| ● DIRECT THERMOCOUPLE INTERFACES |
| ● BLOOD ANALYSIS |
| ● INFRARED PYROMETERS |
| ● LIQUID/GAS CHROMATOGRAPHY |
| ● PRECISION PROCESS CONTROL |
|
