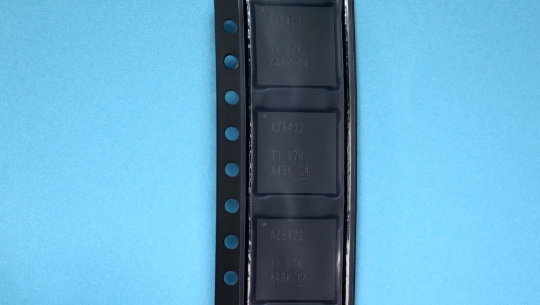

ADS6422IRGCR Texas Instruments QUAD CHANNEL, 12-BIT, 105/80/65 MSPS ADC WITH SERIAL LVDS INTERFACE

Converter Type	General Purpose
Input Type	Voltage
Architecture	Pipelined
Resolution	12bit
Number of ADCs	4
Sampling Rate	65Msps
Digital Interface Type	Serial (1-Wire, 2-Wire)\|LVDS
Voltage Reference	Internal\|External
Input Signal Type	Differential
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Supplier Temperature Grade	Industrial
Minimum Storage Temperature (°C)	-65
Maximum Storage Temperature (°C)	150
Integral Nonlinearity Error	±2LSB
Signal to Noise Ratio	71.4dBFS(Typ)
Sample and Hold	Yes
Number of Input Channels	4
Single-Ended Input	No
Differential Input	Yes
Input Voltage	2Vp-p
No Missing Codes (bit)	12
Full Scale Error	±1%FSR
Differential Nonlinearity	-0.9/1.8LSB
Voltage Supply Source	Analog and Digital
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Digital Supply Support	No
Typical Power Dissipation (mW)	1050
Maximum Power Dissipation (mW)	1250

Supplier Package	VQFN EP
Basic Package Type	Non-Lead-Frame SMT
Pin Count	64
Lead Shape	No Lead
PCB	64
Tab	N/R
Pin Pitch (mm)	0.5
Package Length (mm)	9.15(Max)
Package Width (mm)	9.15(Max)
Package Height (mm)	0.95(Max)
Package Diameter (mm)	N/R
Package Overall Length (mm)	9.15(Max)
Package Overall Width (mm)	9.15(Max)
Package Overall Height (mm)	1(Max)
Seated Plane Height (mm)	1(Max)
Mounting	Surface Mount
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Very Thin Quad Flat No Lead Package, Exposed Pad
Package Family Name	QFN
Package Outline	Link to Datasheet

MSL	3
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	30
Number of Reflow Cycle	3
Standard	J-STD-020D
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	Au
Under Plating Material	Pd over Ni
Terminal Base Material	Cu Alloy

• Base-station IF Receivers

• Diversity Receivers

• Medical Imaging

• Test Equipment
