| • 1-MHz Sample Rate Serial Device |
| • 12-Bit Resolution |
| • Zero Latency |
| • 20-MHz Serial Interface |
| • Supply Range: 2.35 V to 5.25 V |
• Typical Power Dissipation at 1 MSPS:
– 3.9 mW at 3-V VDD
– 7.5 mW at 5-V VDD |
| • INL ±1.25 LSB Maximum, ±0.65 LSB (Typical) |
| • DNL ±1 LSB Maximum, +0.4 / –0.65 LSB (Typical) |
• Typical AC Performance:
– 72.25-dB SINAD, –84-dB THD |
| • Unipolar Input Range: 0 V to VDD |
| • Power Down Current: 1 µA |
| • Wide Input Bandwidth: 15 MHz at 3 dB |
| • 6-Pin SOT-23 and SC70 Packages |
|
| CATALOG |
| ADS7886SDCKR COUNTRY OF ORIGIN |
| ADS7886SDCKR PARAMETRIC INFO |
| ADS7886SDCKR PACKAGE INFO |
| ADS7886SDCKR MANUFACTURING INFO |
| ADS7886SDCKR PACKAGING INFO |
| ADS7886SDCKR ECAD MODELS |
| ADS7886SDCKR FUNCTIONAL BLOCK DIAGRAM |
| ADS7886SDCKR APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
| Korea (Republic of) |
| Taiwan (Province of China) |
| Thailand |
| United States of America |
|
| PARAMETRIC INFO |
| Converter Type |
General Purpose |
| Input Type |
Voltage |
| Architecture |
SAR |
| Resolution |
12bit |
| Number of ADCs |
1 |
| Sampling Rate |
1Msps |
| Digital Interface Type |
Serial |
| Voltage Reference |
Supply |
| Input Signal Type |
Single-Ended |
| Polarity of Input Voltage |
Unipolar |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Integral Nonlinearity Error |
±2LSB |
| Signal to Noise Ratio |
72.25dB(Typ) |
| Sample and Hold |
Yes |
| Number of Input Channels |
1 |
| Single-Ended Input |
Yes |
| Differential Input |
No |
| Input Voltage |
3.3V |
| No Missing Codes (bit) |
11 |
| Full Scale Error |
±1.75LSB |
| Differential Nonlinearity |
±2LSB |
| Voltage Supply Source |
Single |
| Minimum Single Supply Voltage (V) |
2.35 |
| Typical Single Supply Voltage (V) |
3.3 |
| Maximum Single Supply Voltage (V) |
5.25 |
| Digital Supply Support |
No |
| Typical Power Dissipation (mW) |
7.5 |
| Maximum Power Dissipation (mW) |
10 |
|
| PACKAGE INFO |
| Supplier Package |
SC-70 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
2.15(Max) |
| Package Width (mm) |
1.4(Max) |
| Package Height (mm) |
1(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
2.15(Max) |
| Package Overall Width (mm) |
2.4(Max) |
| Package Overall Height (mm) |
1.1(Max) |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Package Outline |
Link to Datasheet |
|
| MANUFACTURING INFO |
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
| PACKAGING INFO |
| Packaging Suffix |
R |

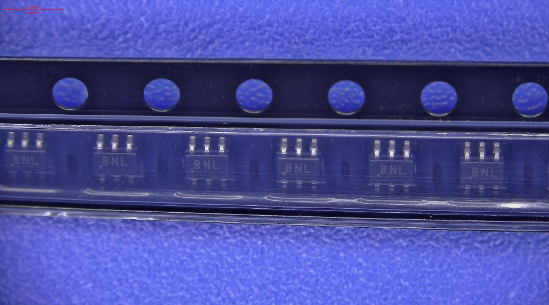

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Q3 |
| Packaging Document |
Link to Datasheet |
|

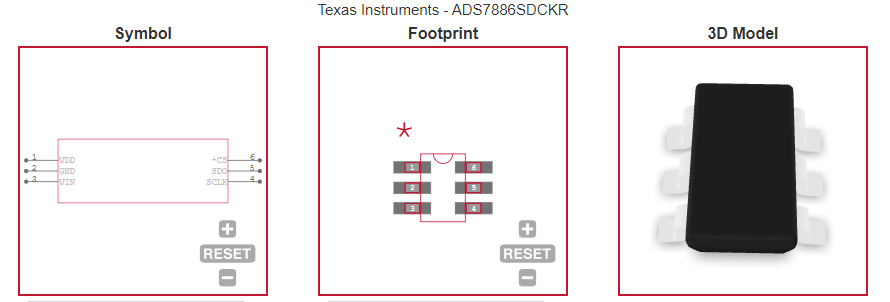

| ECAD MODELS |
 |
|

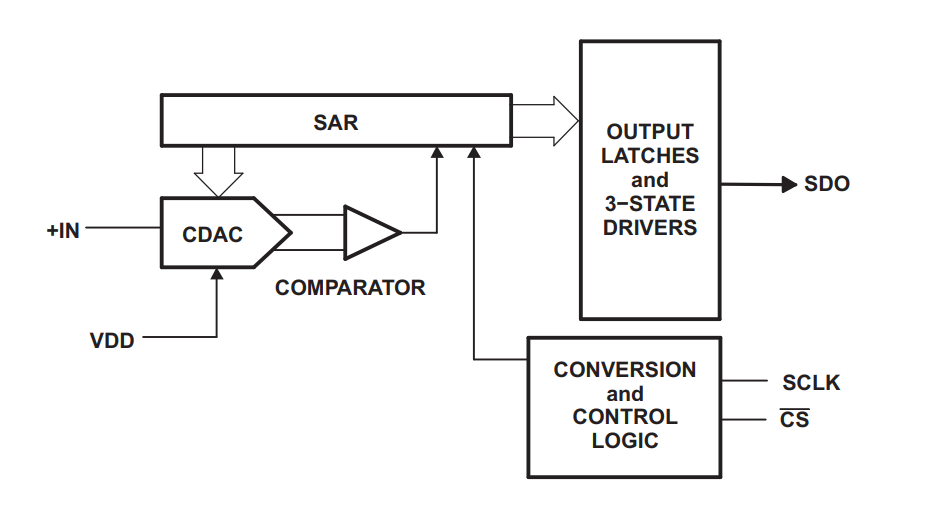

| FUNCTIONAL BLOCK DIAGRAM |
 |
|
| APPLICATIONS |
| • Base Band Converters in Radio
Communication |
| • Motor Current and Bus Voltage Sensors in Digital
Drives |
| • Optical Networking (DWDM, MEMS Based
Switching) |
| • Optical Sensors |
| • Battery-Powered Systems |
| • Medical Instrumentations |
| • High-Speed Data Acquisition Systems
|
| • High-Speed Closed-Loop Systems
|
|
