■ 100-kHz Sampling Rate
|
■ microPower:
– 1.8 mW at 100 kHz and 2.7 V
– 0.3 mW at 10 kHz and 2.7 V
|
■ Power Down: 3 µA (Maximum)
|
■ 8-Pin VSSOP Package
|
■ Pin-Compatible to ADS7816 and ADS7822
|
■ Serial (SPI™/SSI) Interface
|
|
| CATALOG |
| ADS8320EB/2K5 COUNTRY OF ORIGIN |
ADS8320EB/2K5 PARAMETRIC INFO
|
ADS8320EB/2K5 PACKAGE INFO
|
ADS8320EB/2K5 MANUFACTURING INFO
|
ADS8320EB/2K5 PACKAGING INFO
|
ADS8320EB/2K5 ECAD MODELS
|
ADS8320EB/2K5 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
| Malaysia |
China
|
|
PARAMETRIC INFO
|
| Converter Type |
General Purpose |
| Input Type |
Voltage |
| Architecture |
SAR |
| Resolution |
16bit |
| Number of ADCs |
1 |
| Sampling Rate |
100ksps |
| Digital Interface Type |
Serial (3-Wire, SPI) |
| Voltage Reference |
External |
| Minimum Positive Supply Voltage (V) |
2 |
| Maximum Positive Supply Voltage (V) |
5.25 |
| Input Signal Type |
Pseudo-Differential |
| Polarity of Input Voltage |
Unipolar |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Integral Nonlinearity Error |
±0.012%FSR |
| Signal to Noise Ratio |
92dB |
| Sample and Hold |
Yes |
| Number of Input Channels |
1 |
| Single-Ended Input |
No |
| Differential Input |
Yes |
| Input Voltage |
5V |
| No Missing Codes (bit) |
15 |
| Full Scale Error |
±0.024%FSR |
| Differential Nonlinearity |
±2LSB |
| Voltage Supply Source |
Single |
| Minimum Single Supply Voltage (V) |
2 |
| Typical Single Supply Voltage (V) |
2.5|3.3|5 |
| Maximum Single Supply Voltage (V) |
5.25 |
| Digital Supply Support |
No |
| Typical Power Dissipation (mW) |
4.5 |
| Maximum Power Dissipation (mW) |
8.5 |
|
|
PACKAGE INFO
|
| Supplier Package |
VSSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
3.1(Max) |
| Package Width (mm) |
3.1(Max) |
| Package Height (mm) |
0.95(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.1(Max) |
| Package Overall Width (mm) |
5.05(Max) |
| Package Overall Height (mm) |
1.1(Max) |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Very Thin Shrink Small Outline Package |
| Package Family Name |
SOP |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
PdNiAg |
| Terminal Base Material |
Cu Alloy |
|
|

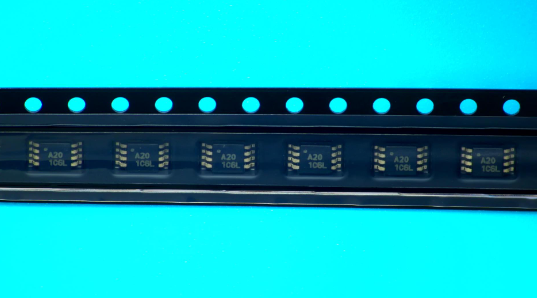

PACKAGING INFO
|
| Packaging Suffix |
2K5 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
13 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|

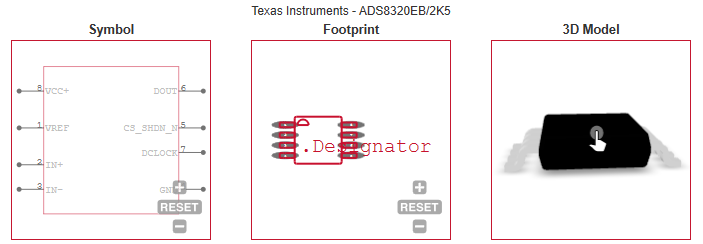

ECAD MODELS
|
|
|
APPLICATIONS
|
• Battery-Operated Systems
|
• Remote Data Acquisition
|
• Isolated Data Acquisition
|
| • Simultaneous Sampling, Multichannel Systems |
• Industrial Controls
|
• Robotics
|
• Vibration Analysis
|
| |
